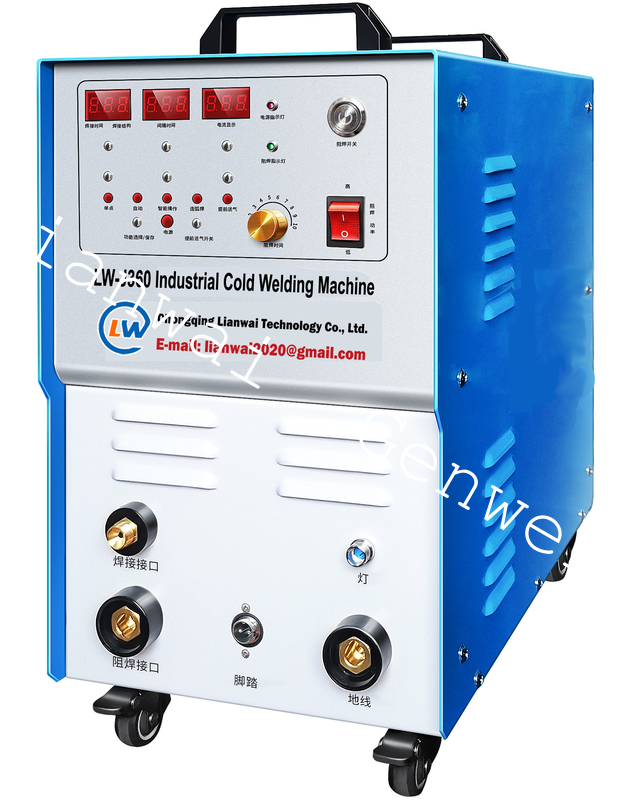

4000w Cold Welding Machine Casting Metal Sheet Welding Machine

4000w Cold Welding Machine Casting Metal Sheet Welding Machine

Product Details:

Place of Origin: Chonqing
Brand Name: Lianwai
Certification: CE
Model Number: LW-J360

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Packaging Details: Carton
Delivery Time: 20 work days
Supply Ability: 1000sets per month
Get Best Price Contact Now

Detail Information

Outline: 500*275*520mm Net Weight: 35kg
Input Voltage: Single-phase 220V±20%-50Hz Input Power: 10-4000W
Peak Power: >80kW Welding Current: 1-200A Adjustable
Welding Time: 1-999 Adjustable Resistance Welding Output: Single Point (adjustable Welding Wire 0.3-2mm)
Argon Delay Stop: 9S Wire Code: 0.2-3.0mm
Highlight:

4000w Cold Welding Machine

,

200A Cold Welding Machine

,

Multifunction Metal Sheet Welding Machine

Product Description

4000w Cold Welding Machine Casting Metal Sheet Welding Machine 0

4000W Cod Welding Machine (Casting parts/ metal sheet welding, Metal mould / Shaft/Gear repair welding)



Working principle:
Using capacitor energy storage, the electrical energy stored in the capacitor is instantly released between the tungsten electrode and the workpiece in the form of a pulsed arc. The arc is discharged in a high-frequency manner. The instantaneous and precise concentrated current makes the temperature after welding less than the temperature emitted by the workpiece. So as to achieve the cold welding effect.



Application areas:
Mold repair, welding of precision parts, shaft repair, sheet metal welding, cold welding deposition, matching automatic tooling welding.



Low temperature repair:

Injection molds, die-casting molds, stamping dies, hot forging dies, shafts, gears, machine tool rails, hydraulic rods, cast iron parts, etc.



Welding materials:

High chromium cast iron, stainless steel castings, galvanized sheet, ductile iron, gray iron, alloy steel, aluminum alloy, thick, medium and thin plates.



Performance characteristics
1. Low temperature welding, precision repair welding, portable resistance welding,
2. Multi-function can meet more demand from users,
3. Star model, fatigue resistance, 0.1mm starting welding,
4. 32V/82000UF imported capacitors, high quality and reliable,
5. Operators without welding experience can also weld beautiful products.





Equipment advantages



Welding

1. Welding various metal sheets (thickness:0.2-5.0mm), with small deformation and beautiful welding seam,

2. The welding seam is flat and smooth, deep welding penetration and high firmness,

3. No spatter, no welding fumes, environmental protection and energy saving welding;

4. Suitable for welding on various positions of parts. Not restricted by the table;

5. The internal stress is small and will not cause bending and cracking of the base material;

6. The minimum weld seam is 0.05mm and the maximum can reach 8.0mm.



Repair welding

1. Fast repairing speed, the fastest repairing speed can reach 100 mm3;

2. The repair temperature is lower, no undercut, no deformation, no heat-affected zone. No heat treatment before and after welding repair;

3. The welding repair accuracy is extremely high, and it is suitable for welding repairs of various defects;

4. Metallurgical bonding, no falling off, no edge collapse, and can be matched with the strength of the base metal for welding repair.



Specification sheet

Device model AXT-J360 Product Size 500mm×275mm×520mm
Product weight 35KG Using electric Single -phase 220V±20% -50HZ
Power consumption 10-4000W Instantaneous maximum output power More than 80KW
Arc welding output Automatic single point, adjustable Output current Output 1-200 adjustable
Output time Output pulse time 1-999 ,adjustable Resistance welding output Single point (adjustable welding wire 0.3-2.0mm)
Argon delay time 9S Welding wire specification range 0.2mm-3.2mm
Welding speed 10-999 ,adjustable Cooling method Air cooling




4000w Cold Welding Machine Casting Metal Sheet Welding Machine 1



4000w Cold Welding Machine Casting Metal Sheet Welding Machine 2



4000w Cold Welding Machine Casting Metal Sheet Welding Machine 3





4000w Cold Welding Machine Casting Metal Sheet Welding Machine 4
