Product Details:

Place of Origin: Chongqing
Brand Name: GENWELD
Certification: CE
Model Number: LW-S9500

Payment & Shipping Terms:

Minimum Order Quantity: 2
Packaging Details: Packing with form & carton, carton dimension:460*265*495mm
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Control Mode: Digital Control Input Voltage/Hz: 220V/50Hz
Input Power: 2.8kW Build-up Welding Current: 400-1200A
Output Power: 4kW Dimension: 410*215*445mm
Net Weight: 23kG Protection Class: IP40
High Light:

4kW Sheet Metal Welding Machine

,

Intelligent Spark Cold Welding Machine

,

Sheet Metal Welding Machine IP40

Product Description

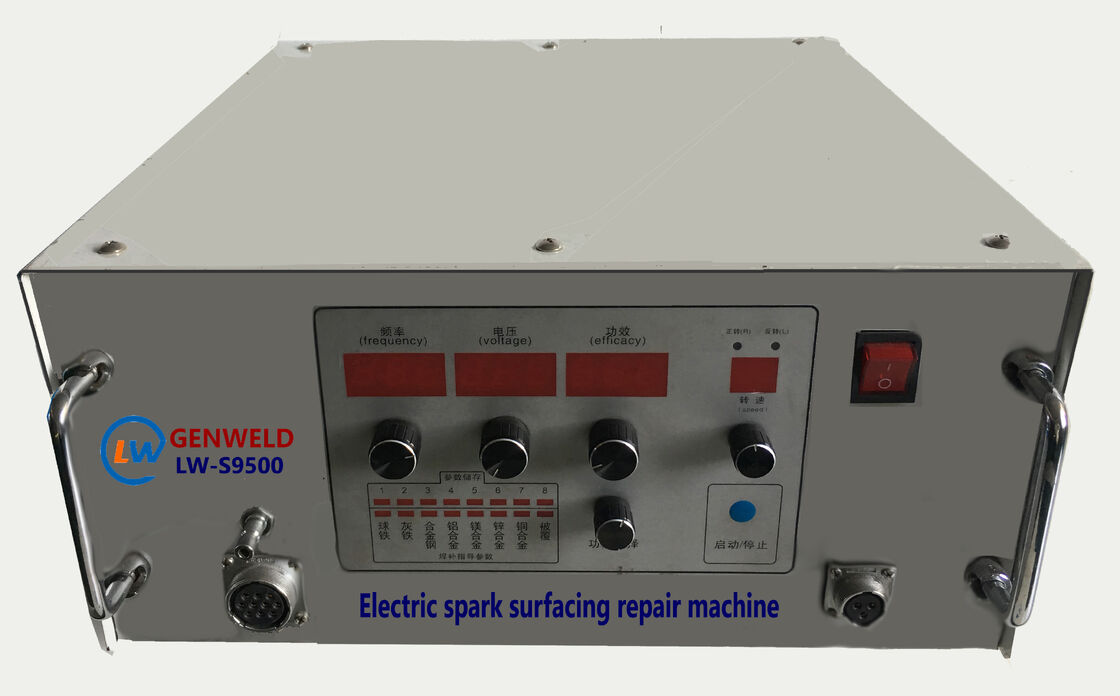

LW-S9500 Spark Building-up Welding Repair Machine Introduction



LW-D9500 is a high-power and high-speed intelligent electric spark surfacing repair cold welding machine developed by Chongqing Union Technology Co., Ltd. It uses capacitor continuous discharge and micro-atomic bonding to make the welding material and the base metal perfect metallurgical combination. The latest integrated motherboard with intelligent switching and 16 fast switching modes make repairing easier.



Scope of Application



1. Repair of all casting defects, various metal defects, and mold repairs;

2. Gray cast iron, ductile iron, cast steel, cast aluminum, stainless steel precision casting, alloy casting, etc.;

3. High chromium cast iron, die casting, gravity casting, low pressure, high pressure casting, zinc alloy casting, etc.;

4. Use castings to repair defects such as pores, slag inclusions, cracks, machining over-tolerance.



Performance Characteristics



1. Easy to process, no porosity, no undercut, no hard spots;

2. Perfect metallurgical bonding has no heat shadow area after welding;

3. Adopting multiple pieces of reverse-wound two-wire package rectifier transformer, the power is more than twice the previous;

4. Built-in independent rectifier, stable output even under unstable voltage;

5. The welding torch shell adopts a hollow process, which will not heat up for long time welding;

6. Linkage switch makes the operation more convenient.



Parameter Sheet of LW-D9500 Spark Building-up Welding Repair Machine
Model AXT-9500 Control method Digital control
Input voltage 220V Surfacing current 400-1200A
Input Current 15A Surfacing thickness Any
input power 3000W Electrode diameter 1.2-3.6mm
The output voltage 50-100V Output current 1000A
Percentage of discharge 10%-100% Protection level IP40
Instantaneous output power 4.0KW Dimensions 410mm ×215mm×445mm
Instant melting point of welding material Over 2500℃ Weight 25Kg
Internal power supply Double closed loop current type PWM switching power supply
