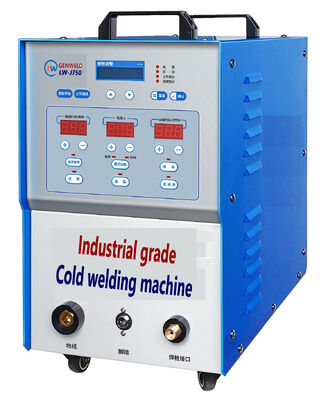

Arc Voltage Monitoring Cold Welding Machine 310A Repair Surfacing
Product Details:
Place of Origin: | Chongqing |
Brand Name: | GENWELD |
Certification: | CE |
Model Number: | LW-J750 |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 sets |
---|---|
Packaging Details: | Packing with foam & carton, Packing size:600*400*620mm, One set/ carton |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 Sets Per Month |
Detail Information |
|||
Input Power: | 3-phase/380V/50-60Hz | Output Current: | 10-310A |
---|---|---|---|
Pulse Speed: | Ajustable | Mode Optional: | Pulse Welding, Continuous Pulse Welding, Continuous Welding |
Argon Delay: | 9S | Cold Way: | Forced Air Cooling |
Dimensions: | 500*300*520mm | ||
High Light: | 380V Continuous Cold Welding Machine,Cold Welding Machine 310A,Repair Surfacing Cold Welding Machine |
Product Description
Highlights of LW-J750 Industrial Cold Welding Machine
1. The diameter of the solder joint is 2-12mm,
2. Power 7500W,
3. Pulse welding, continuous pulse, pull welding,
4. Arc voltage monitoring weld height tracking system.
Weld Height Tracking System:
Weld seam height tracking system: The arc voltage monitoring system is used to monitor and control the height of the welding gun and the workpiece during automatic welding / repair process. In the automatic welding production process, when the arc deviates from the weld seam, the arc is adjusted back to the weld seam position in time and accurately.
Welding seam tracking system is roughly divided into three parts: sensor, control system, and actuator.
Features of LW-J750 Industrial Cold Welding Machine
1. The welding seam height tracking system can automatically adjust the height and make welding repair more flexible.
2. It can be matched with automatic tooling, which has higher efficiency and lower cost, and solves labor problems.
3. Industry-leading technology to realize automatic surfacing of inner holes.
4. The application of the product is not restricted by the fixture and the work surface, and the application range is wider.
5. After welding, the teperature is low, and the workpiece has no thermal deformation.
6. The welding seam is smooth and beautiful, and the welding spot is silvery white without blackening.
7. The surfacing height is unlimited, and the machining allowance after welding is accurate, saving time and effort.
8. No undercut, no porosity, no collapse, no annealing, no need for preheating and heat preservation after welding.
9. The metallurgical bonding strength is high, and it can be processed by turning, milling, planing and grinding after welding.
10. The current is accurately concentrated, and the damage to the base material is small, which effectively solves the cracking problem caused by internal stress.
11. The temperature after welding is low, and the heat-affected zone is small, so the metallographic structure of the base metal is not changed.
12. It can be welded and repaired, so that one machine can be used for multiple purposes.
13. With 20 intelligent parameter storage functions, the operation is simple and no professional welder is required.
LW-J750 Industrial Intelligent Cold Welding Machine Parameters:
Equipment model | LW-J 750 | Product size | 500×300×520mm |
Product weight | 35KG | Input power | Three-phase, 380V-50/60HZ |
Power consumption | 10-7500W | Instsient max. output power | More than 150KW |
Wire code | 0.2-5.0mm | Output current range | 10-310A |
Pulse speed | Adjustable | Mode selection | Single-point / continuous / arc welding |
Aron gas delay time | 9S | Welding height | Any |
Protection level | IP21S | Cooling mode | The fan enforces air cooling |
