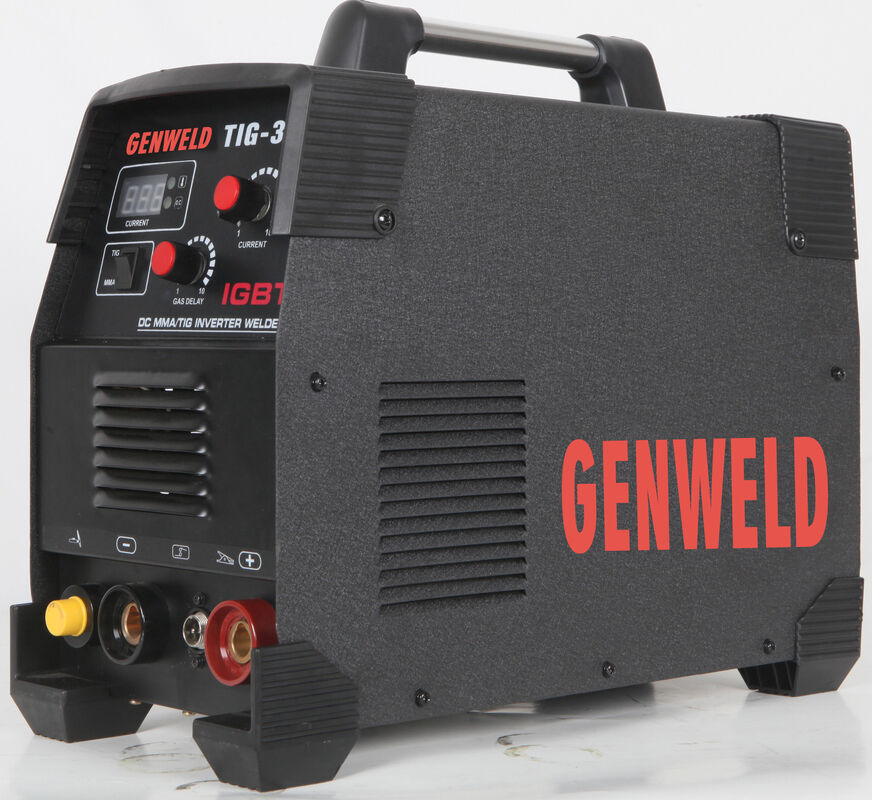

Portable Rated 230A TIG IGBT Inverter Welder

Brand Name:	GENWELD
Model Number:	TIG315A
MOQ:	50 SETS
Price:	USD135-140 Per set
Delivery Time:	30 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHONGQING

Certification:

Input Voltage:

3-phase AC380V

Input Current:

MMA:48 A / TIG:34A

Welding Current:

MMA:20-220A TIG:15-230A

MMA Duty Cycle:

60%/220A/28.8V, 100%/170A/26.8V

TIG Duty Cycle:

60%/230A /19.2V, 100%/178A/17.1V

Rod Dia.:

MMA:2.5-4.0mm, Tungsten:φ1.0～4.0

Insulation Class:

Protection Class:

IP23

Net Weight:

10kg

Packing Size:

505*270*410

TIG Gun:

WP-26

Packaging Details:

505*270*410mm

Supply Ability:

10000 sets per month

Highlight:

MMA 48A Portable Inverter Welder

4.0mm Rod Portable Inverter Welder

IGBT Portable Inverter Welder

Product Description

GENWELD Portable 230A Argon ARC welding Machine(TIG)

Features:

• The front panel is equipped with overheat-protection and over-current protection indicators. The current display is used to show the current data accurately. The acceptable input voltage range 380V.

• Three-layer PCB structure ensures the performance of the welding machine. Especially, the power supply board is more safe and stable.

• Hi-speed running fan with more optimized heat sink channel design, which makes the heat dissipation effect is 30% higher than the same type of inverter welding machine.

• Full bridge Inverter IGBT dual modules, large output voltage.

• Large capacitors are more flexible and support to connect with generator use.

• The whole series of products with hot arc starting, arc force, and anti-sticking functions. Easy to start the arc, low-pressure drop, comfortable operation.

• New dust-proof design, nice appearance, more cost-effective, more portable, and lighter.

Application field

• It’s widely used for many kinds of metal welding, like carbon steel, stainless, iron and etc.

Specification sheet

Model	TIG 315A
Input voltage (V)	AC380V
Rated input current(A)	MMA:48 / TIG:34
Current range(A)	MMA:20-220A TIG:15-230A
No load voltage(V)	70
Duty cycle@40℃	60%	100%
Max. output current(A)	MMA:220 TIG:230	MMA:170 TIG:178
Max.output Voltage(V)	MMA:28.8 TIG:19.2	MMA:26.8 TIG:17.1
Max. output power(W)	MMA:6336 TIG:4146	MMA:4556 TIG:3043
Rated output current(A)	MMA:220 TIG:230	MMA:220 TIG:230
Rated output Voltage(V)	MMA:28.8 TIG:19.2	MMA:28.8 TIG:19.2
Welding rod(mm)	Tungsten:φ1.0～4.0
Electrode(mm) for MMA	2.5/3.2/4.0
Insulation Class	F
Protection Class	IP23
Dimension (mm)	430200380
Net weight (kg)	10
Packing Dimension(mm)	505270410
Gross weight(kg)	11.35
TIG Gun(m)	WP-26
Ground Cable+Clamp(m)	1.5(copper)
Power cable+Plug(m)	1.5

Portable Rated 230A TIG IGBT Inverter Welder 0

Portable Rated 230A TIG IGBT Inverter Welder 1
