products details
|

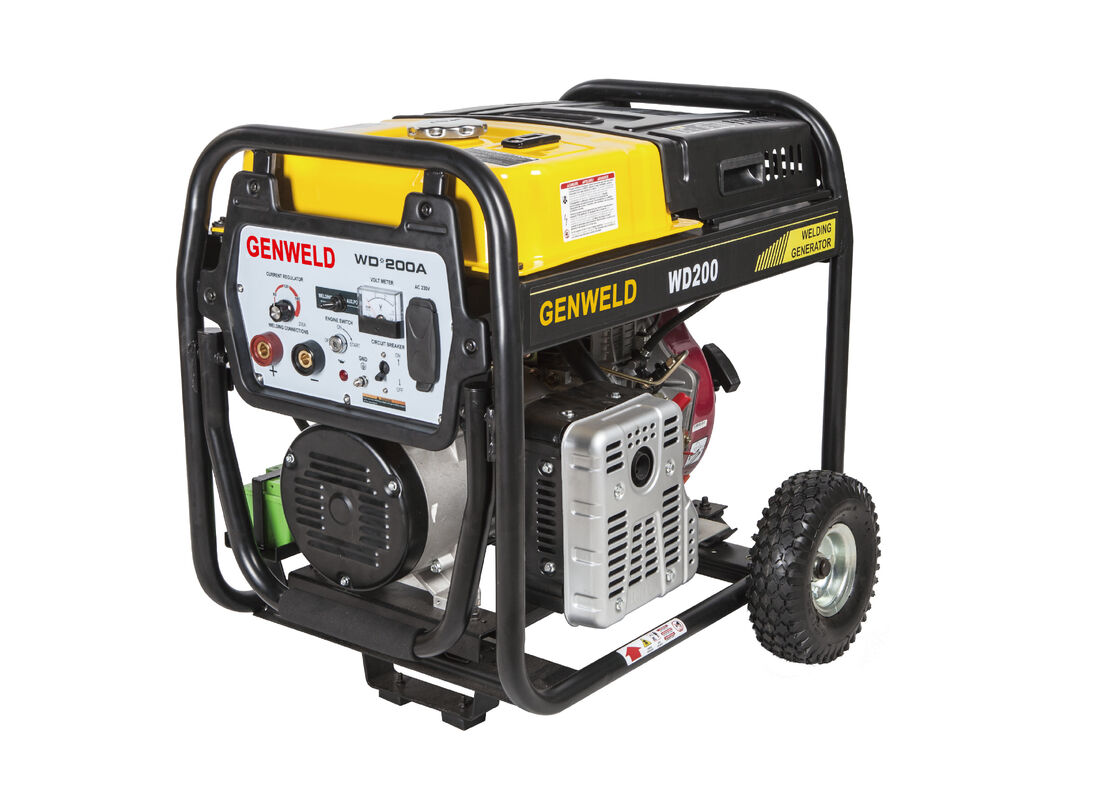

Small Size Portable Welder And Generator WD200A Diesel MMA Welding Machine
| Brand Name: | GENWELD |
| Model Number: | WD200A |
| MOQ: | 1 container |
| Price: | USD767-800/set |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,, L/C |
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Name:
Generator Welding Machine
Rated Power Output:
AC2.0Kw/240V Or 120V
Engine Brand & Type:
Weima/WM192FE
Max. Power/Speed:
8.2Kw/3600rpm
Fuel:
Diesel
Start Method:
Recoil/Electric
Net Weight:
118Kg
Packing Sizes:
770*545*675mm
Packaging Details:
Seaworthy carton,770*545*675mm, 84Sets/20GP
Supply Ability:
1000 sets per month
Highlight:
generator welding machine
,engine driven welder generator
Product Description
Small Size Portable Welder And Generator WD200A Diesel MMA Welding Machine
| Model | SUA200A | |
| Generating section | Rated OCV(V) | 220(AC) |
| Rated power(kw) | 5.0 | |
| Max.power(kw) | 5.5 | |
| Rated current | 22.7 | |
| Welding section | Duty cycle(%) | 60% |
| OCV(V) | 75(DC) | |
| Rectifier | MDS | |
| Current range(A) | DC 50-200A | |
| Loaded voltage(V) | DC 22-28V | |
| Rated current/voltage(A/V) | 180A / 27.2V | |
| Engine section | Engine model | SC420 |
| Max.power/Speed(RPM) | 9.2kw/3600rpm | |
| Displacement(CC) | 420 | |
| Start method | Recoil/Electric | |
| Whole set | Tank capacity(L) | 25 |
| Protection/insulation level | IP23 | |
| Outline size(mm) | 760*530*660mm | |
| Carton packing size | 770*545*675mm | |
| Net/gross weight(kg) | 118/121 | |
| Standard accessories | Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m | |
