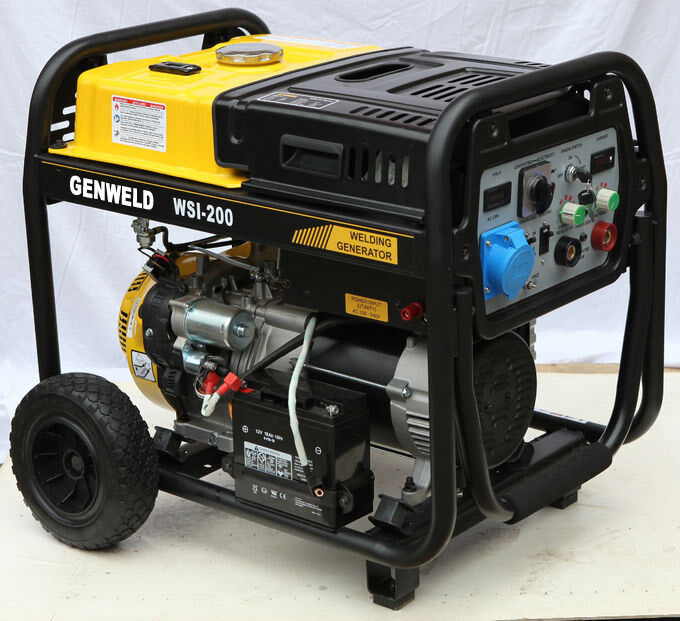

WSI-200 200A MMA Inverter Welder Powered By Both Self Power / Utility Power Grid
| Brand Name: | GENWELD |
| Model Number: | WSI-200 |
| MOQ: | 1 container |
| Price: | USD630-650/set |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,, L/C |
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Rated Duty Cycle:
50%/170A/26.8V
Rated Power Output:
AC6.5Kw/240V Or 120V
Engine Brand & Type:
Senci/SC420
Max. Power/Speed:
9.2Kw/3600rpm
Fuel:
Gasoline
Start Method:
Recoil/Electric
Name:
Inverter MMA Welding Machine
Packing Sizes:
780*545*632mm
Packaging Details:
Seaworthy carton,780*545*632mm,84Sets/20GP
Supply Ability:
1000 sets per month
Highlight:
diesel engine driven welder
,mma arc welding machine
Product Description
WSI-200 200A MMA Inverter Welder Powered By Both Self Power / Utility Power Grid
| Model | WSI-200 | |
| Generating section | Rated OCV(V) | 400/230(AC) |
| Rated power(kw) | 6.5 | |
| Max.power(kw) | 7.0 | |
| Rated current | 9.3/28.3 | |
| Welding section | Duty cycle(%) | 50% |
| OCV(V) | 75(DC) | |
| Rectifier | IGBT | |
| Current range(A) | DC 40-200A | |
| Loaded voltage(V) | DC 21.6-28V | |
| Rated current/voltage(A/V) | 170A / 26.8V | |
| Engine section | Engine model | SC420 |
| Max.power/Speed(RPM) | 9.2kw/3600rpm | |
| Displacement(CC) | 420 | |
| Start method | Recoil/Electric | |
| Whole set | Tank capacity(L) | 25 |
| Protection/insulation level | IP23 | |
| Outline size(mm) | 775*540*627 | |
| Carton packing size | 780*545*632 | |
| Net/gross weight(kg) | 98/103 | |
| Standard accessories | Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m | |
