WSI-200 200A Petrol Welding Machine Powered By Both Self Power / Utility Power Grid

WSI-200 200A Petrol Welding Machine Powered By Both Self Power / Utility Power Grid

Product Details:

Place of Origin: Chongqing,China
Brand Name: GENWELD
Certification: CE
Model Number: WSI-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 container
Price: USD630-650/set
Packaging Details: Seaworthy carton,790*555*642mm,96 Sets/20GP
Delivery Time: 20-30 days after received prepayment
Payment Terms: T/T,, L/C
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Name: Petrol Welding Machine Rated Power Output: AC6.5Kw/240V Or 120V
Engine Brand & Type: Senci/SC420 Max. Power/Speed: 9.2Kw/3600rpm
Fuel: Gasoline Start Method: Recoil/Electric
Net Weight: 98Kg Packing Sizes: 780*545*632mm
High Light:

portable stick welding machine

,

arc welder generator

Product Description

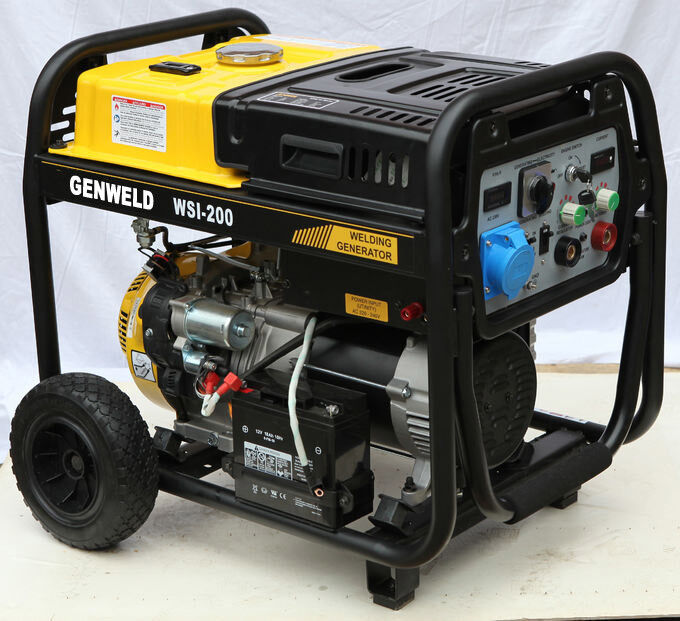

GENWELD  WSI-200 200A Portable Petrol Welder Generator Powered by Both Self-Power And Utility Power Grid



GENWELD  WSI-200 Engine Driven Inverter Welder Specifications:



Model WSI-200
Generating section Rated OCV(V) 230(AC)
Rated power(kw) 6.5
Max.power(kw) 7.0
Rated current 28.3
Welding section Duty cycle(%) 50%
OCV(V) 75(DC)
Rectifier IGBT
Current range(A) DC 50-190A
Loaded voltage(V) DC 21.6-28V
Rated current/voltage(A/V) 170A / 26.8V
Engine section Engine model SC420
Max.power/Speed(RPM) 9.2kw/3600rpm
Displacement(CC) 420
Start method Recoil/Electric
Whole set Tank capacity(L) 18
Protection/insulation level IP23
Outline size(mm) 775*540*627
Carton packing size 780*545*632
Net/gross weight(kg) 98/103
Standard accessories Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m

WSI-200 200A Petrol Welding Machine Powered By Both Self Power / Utility Power Grid 0

WSI-200 200A Petrol Welding Machine Powered By Both Self Power / Utility Power Grid 1

WSI-200 200A Petrol Welding Machine Powered By Both Self Power / Utility Power Grid 2
