Portable 200A Gasoline Engine Driven Welder (MMA, TIG, Cellulose-down welding)

Brand Name:	GENWELD
Model Number:	WDF-200
MOQ:	1 20GP (54 sets)
Price:	USD1346-1400/set
Delivery Time:	30-35 days after received prepayment
Payment Terms:	T/T,, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Chongqing,China

Certification:

Duty Cycle:

100%/200A/28V

Generating Output Power:

AC6.0Kw/240V

Current Range:

DC50-230A

Engine:

Gasoline SC460

Paking Size::

920*670*750mm

Packing Weight:

121kG

Packaging Details:

Pallet case, 950*620*740mm, 54 sets/20GP

Supply Ability:

1000 sets per month

Highlight:

diesel engine driven welder

multi process welder generator

Product Description

GENWELD Portable 200A Gasoline Stick/TIG/Cellulose Welding Generator

Application:

Suit for high quality welding requirement field construction: petroleum gasline, steel rail, steel structure installment, municipal construction. Also reserve as generator.Suits for welding φ1.6~φ5.0 various kinds of electrodes, meets site welding demand.

Features:

1. Welding performance: adopt medium frequency permanent magnet single-chip control technology, strong power, small size and light weight.

2. The complete unit adopts mature &optimized frame structure, easy for operation and maintenance.

3. Auxiliary power output: AC 6Kw, can generate power and weld synchronously or independently.

4. Welding power with Stick/Cellulose down welding/lift Arc TIG functions.

5. Digital technology optimizes the control circuit, more simple & reliable; Modularization design&assemble of control circuit and power circuit makes assembly easy,maintenance convenient,the bulk structure more compact.

Specifications:

Welding	Welding method	Stick/Cellulose	TIG
	Open circuit voltage	70~75	70~75
	Welding range	20A/20.8V～200A/28.V	20A/10.8V～220A/18.8V
	Rated welding current(A)	200	220	200
	Rated welding voltage(V)	28	18.8	18
	Duty cycle	100%	60%	100%
Power Generating	Rated output power	6KW
	Max output power	6.5KW
	Rated output voltage	230V AC
	Rated output current	26A
	Frequency	50/60Hz
	Power factor	1
Whole set	Cooling way	Air cooling
	Net weight/Outline size	100Kg/820×570×600
	Protection/Insulation class	IP23/F

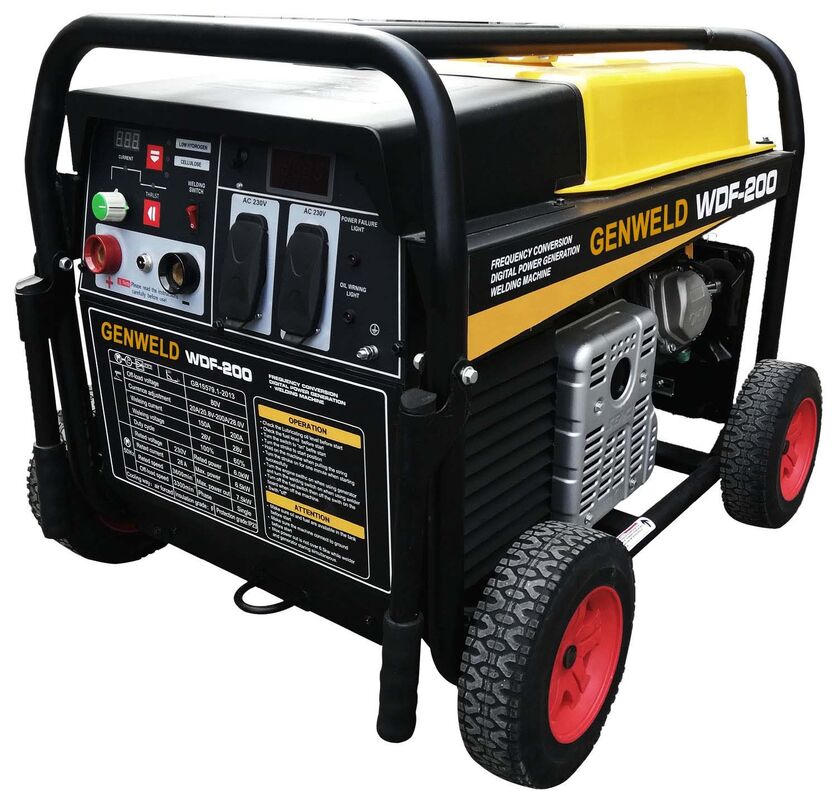

Portable 200A Gasoline Engine Driven Welder (MMA, TIG, Cellulose-down welding) 0

Portable 200A Gasoline Engine Driven Welder (MMA, TIG, Cellulose-down welding) 1

Portable 200A Gasoline Engine Driven Welder (MMA, TIG, Cellulose-down welding) 2
