Portable 200A MMA/TIG Welding Generator

Portable 200A MMA/TIG Welding Generator

Product Details:

Place of Origin: China
Brand Name: Lianwai
Certification: CE
Model Number: LWG210C

Payment & Shipping Terms:

Minimum Order Quantity: 5 SETS
Packaging Details: Carton
Delivery Time: 20 work days
Supply Ability: 1000 SETS
Get Best Price Contact Now

Detail Information

Welding Process: MMA Welding Current: 65-200A
Duty Cycle: 60%/190A/27.6V Auxiliary Power Output: DC 1.5kW / 220V
Net Weight: 65kg Dimension: 600*500*550mm
Fuel: Gasoline Protection/Insulation Class: IP23
High Light:

200A Welding Generator


MMA Welding Generator


DC 1.5KW Welding Generator

Product Description

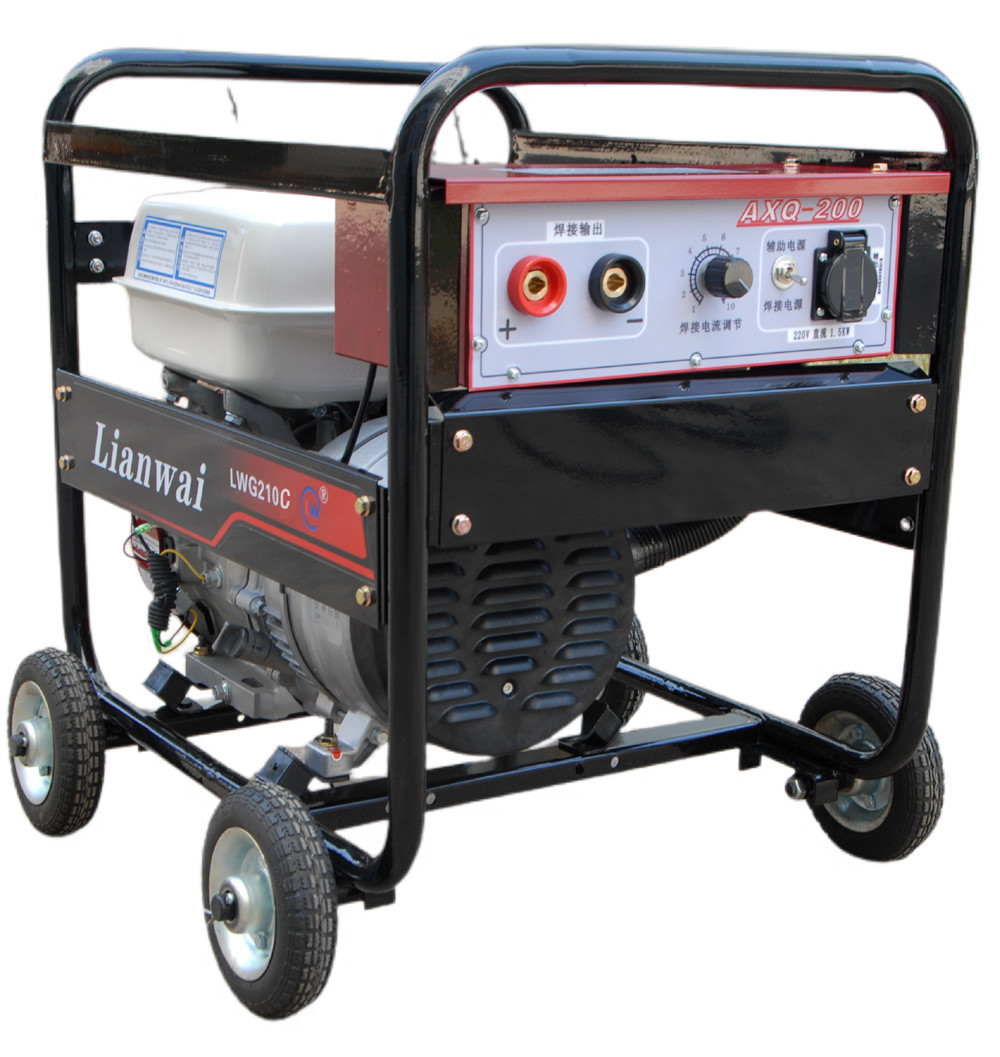

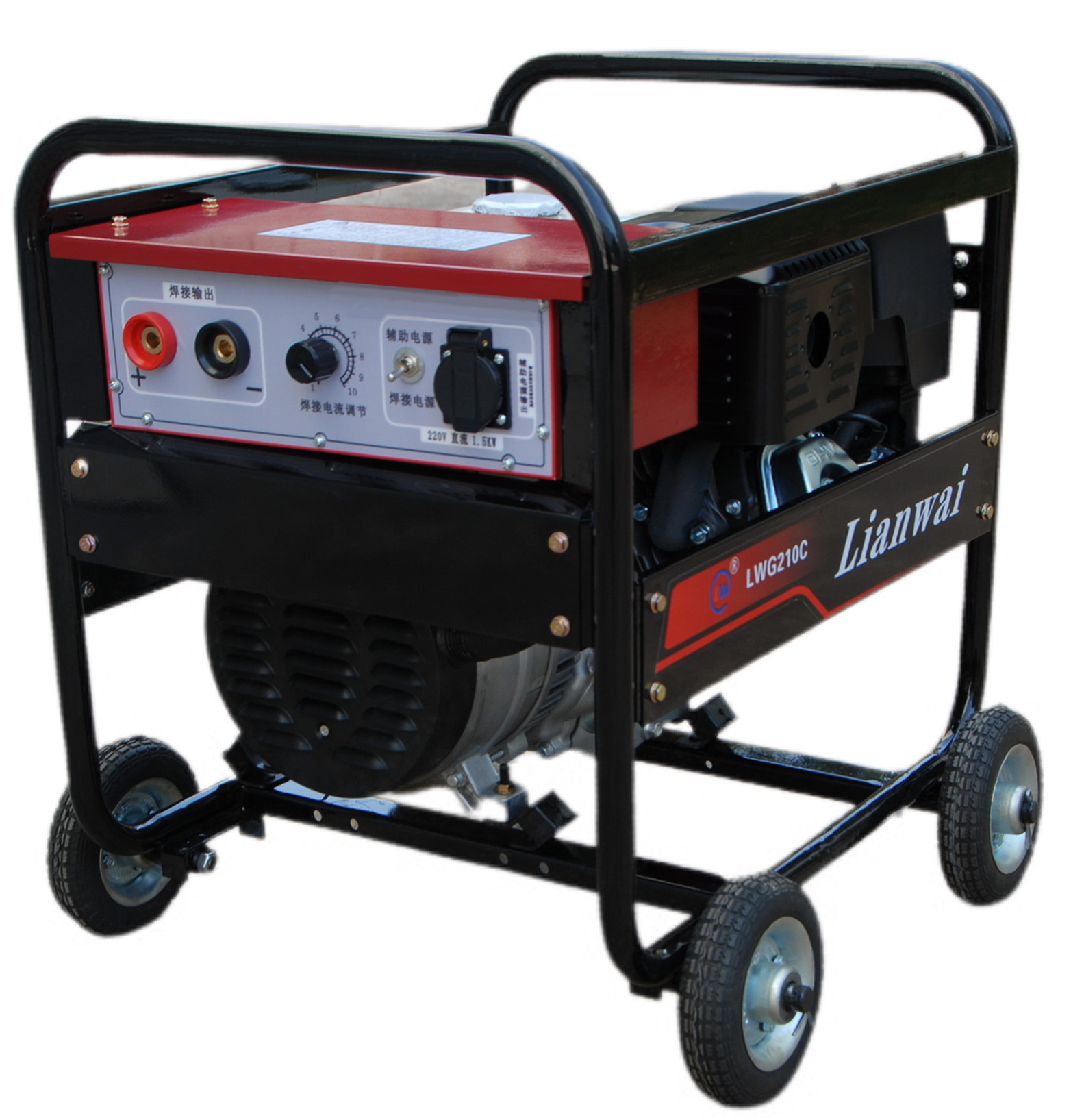

LWG210C 200A Gasoline Welding Generator



LWG210C is a economic engine driven welder, which can output 200A welding current or DC 1.5kW 230V auxiliary power. Due to its small size, light weight, convenient movement, and self-generation, this machine can meet general welding demand (MMA), it can also be used as emergency lighting equipment for household emergency and some small service places.



1. Adopt MF generating technolog,the arc is stable and the performance is safe and reliable.
2. Can continuous weld Ȼ2.5--Ȼ4.0 electrodes, and output DC 1.5kW/220V auxiliary power for running grinding & lighting.
3. Compact structure,small size for transfer, only 65kg.



1. Maintenance and repair of highway guardrails and power facilities,
3. Maintenance of fences & agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. House emergency power supply.


Main specification sheet

Product Model LWG210C
Welding Generator Rated generator output power(Kw) 5.6
No-load voltage(V0) 65-70
Max welding current(Im) 200
Rated welding current(If) 190
Rated welding voltage(Vf) 27.6
Duty cycle(x) 60%
Engine Brand LW
Engine power 15.0Hp
Max rpm 3600
Starting Recoil
Lubricant alarm system Yes
Emission(cc) 420cc
Fuel capacity(L) 6.2
Lubricant capacity(L) 1.1
Fuel consumption(g/kw.h) 370
Overall unit Wire Diameter Capacity(d) ¢2.5-¢4.0mm
Rated auxiliary Power output(Kw) DC 220v 1.5Kw
Insulation Class F level 155℃
Net weight(kg) 65Kg
Overall Dimensions(L×W×H) 600*500*550mm



Portable 200A MMA/TIG Welding Generator 0


Portable 200A MMA/TIG Welding Generator 1

Portable 200A MMA/TIG Welding Generator 2


Portable 200A MMA/TIG Welding Generator 3
