LWG210 210A MMA Engine Driven Arc Welder Single Phase

LWG210 210A MMA Engine Driven Arc Welder Single Phase

Product Details:

Place of Origin: China
Brand Name: Lianwai
Certification: CE
Model Number: LWG210

Payment & Shipping Terms:

Minimum Order Quantity: 5 SETS
Packaging Details: Carton
Delivery Time: 20 work days
Supply Ability: 1000 SETS
Get Best Price Contact Now

Detail Information

Welding Process: MMA Welding Current: 40-210A
Duty Cycle: 60%/200A/28V Auxiliary Power Output: Single-phase/220V/3kW 50Hz
Net Weight: 68kg Dimension: 610*550*600mm
Fuel: Gasoline Protection/Insulation Class: IP23
High Light:

MMA Engine Driven Arc Welder

,

210A Engine Driven Arc Welder

,

3KVA Engine Driven Arc Welder

Product Description

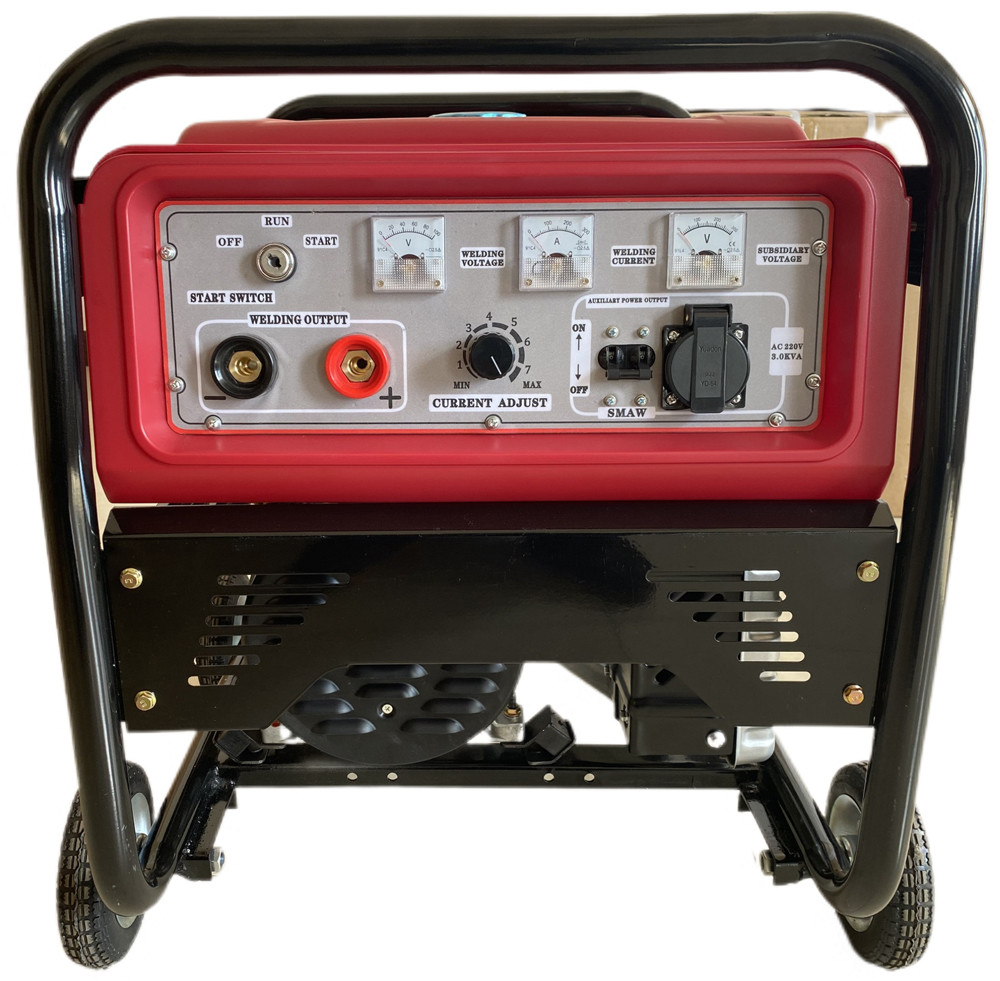

LWG210 210A Gasoline Welding Generator



Introduction

LWG210 is an industrial portable welding generator, which can output 230A welding current and 220V/50Hz single-phase 3KVA auxiliary AC power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.



Characteristics

1. IF power generation technology,
2. Welding current are steplessly adjustable.
3. Suitable for various brands of electrodes.
4. Beside MMA welding, it also has TIG function (scratch arc ignition type).
5. Auxiliary output: Single-phase, AC 3kW/220V/50Hz



Application

1. Oil/gas/water pipeline welding,,
2. Maintenance and repair of highway guardrails and power facilities,
3. Repair of fences and agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. Emergency power supply



Main specification sheet
Product Model LWG210
Welding No-load voltage 65-70V
Welding current range 65-210A
Duty cycle 60%/200A/28V
Electrode diameter ¢2.5-¢4.0mm
Generating Rated generator output power Single-phase/220V/3kW 50Hz
Engine Brand LW B&S
Engine power 15.0Hp 13.5Hp
Max speed 3600 rpm
Starting Recoil
Lubricant alarm system Yes
Emission(cc) 420
Fuel capacity(L) 15
Lubricant capacity(L) 1.1
Fuel consumption(g/k.h) 370
Whole set Insulation Class H level 180℃
Net weight(kg) 68Kg
Overall Dimensions(L×W×H) 610*550*600mm
Quotation:USD1010/set FOB Guangzhou,mini order:5 sets
Warranty:1 year
Payment term:30% T/T advance, balance paid off before shipment.
Delivery term:20 days after received 30% prepayment.
