Product Details:

Place of Origin: Chongqing, China
Brand Name: GENWELD
Certification: CE
Model Number: WAG200

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: USD 1400-1450 per set
Packaging Details: Carton with pallet
Delivery Time: 30days
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Duty Cycle: 50%/180A/27.2V Power Output: AC5.0kw/240V Or 120V
Air Pressure Range: 0.6-0.8Mpa Air Tank: 200L
Net Weight: 380 Dimension: 1230*680*1130
Protection Class: IP23
High Light:

engine driven welders

,

portable stick welding machine

Product Description

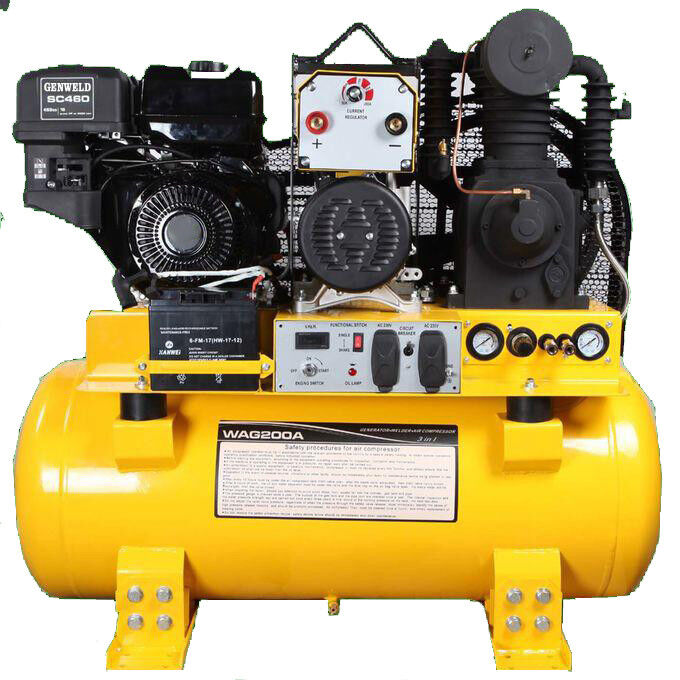

GENWELD  WAG200A Portable 200A Welding Generator With 5Kw /240/120V Auxiliary Output & 200L 0.6-1.2Mpa Air Compressure

Application:Steel material welding, general-purposed electric tools, and pneumatic tools

Features:

1. Multi-functions(welding,aircompressing,power generating),meet site maintenance demand,

2. Especially suitable for industrial pneumatic tool demand,

3. AC 5.0Kw output power can drive common electric tools,

4. Rated 170A welding current meet civil steel material welding .

GENWELD  WAG200A Portable 200A Welding Generator Specifications

Generating section Rated OCV(V) 220(AC)
Rated power(kw) 5.0
Max.power(kw) 5.5
Rated current 22.7
Welding section Duty cycle(%) 50%
OCV(V) 75(DC)
Rectifier MDS
Current range(A) DC 50-200
Loaded voltage(V) DC 22-28V
Rated current/
voltage(A/V)
DC 170A / 26.8V
Engine section Engine model SC460
Max.power/Speed(RPM) 10.2Kw/3600rpm
Displacement(CC) 459
Start method Recoil/Electric
Battery 12V/4Ah/Lithium battery
Whole set Tank capacity(L) 6.5
Protection/insulation level IP21S
Outline size(mm) 1230*680*1130
Carton packing size 1325*720*1135
Net/gross weight(kg) 380kg
Standard accessories Start method:through belt
Start method:through belt
Air compressor capacity:500L/min
Pressure relief operation value:1.2 ±0.1
Pressure relief starting value:0.8 ±0.1
Safe valve operation value:1.2 ±0.1
Volume of Air Storage Tank:200L/single tank
