Gasoline Engine Driven Welding Machine MS*MF300 300A With DC3.0Kw Auxiliary Output

Brand Name:	GENWELD
Model Number:	WSMF300
MOQ:	one 20GP
Price:	USD1300-1350/set
Delivery Time:	30 days

Detail Information

Product Description

Detail Information

Place of Origin:

Chongqing,China

Certification:

Welding Process:

MMA

Name:

Portable MMA Welder

Welding Current Range:

50-300A

Auxiliary Power Output:

AC3.0Kw/230V

Engine Type:

Senci 2V78/SC690

Max.power/Speed:

14.5Kw/3600rpm

Net Weight:

113 Kg

Outline Dimension(mm):

850*564*600mm

Protection/Insulation Class:

IP23

Packaging Details:

Carton Packing size:850*564*600mm

Supply Ability:

1000 sets per month

Highlight:

engine driven welder generator

portable welder and generator

Product Description

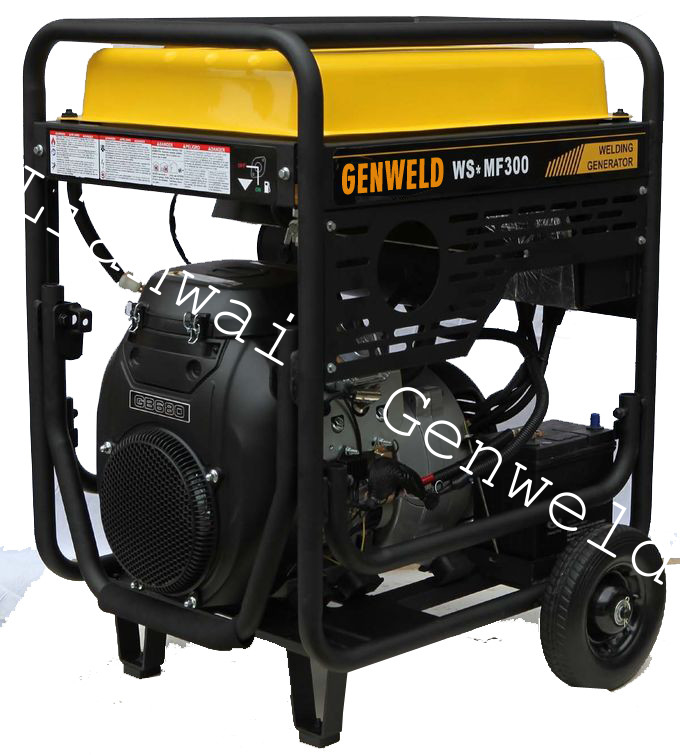

GENWELD Portable MS*MF300 300A Gasoline Engine Driven Welding Machine With DC3.0Kw Auxiliary Output

GENWELD Portable MS*MF300 300A Gasoline Engine Driven Arc Welder Specifications:

WELDING	Model	MS*MF300
	Open circuit voltage(V)	85
	Welding voltage(V)	22-32
	Current range(A)	50-300
	Duty cycle	60%/280A/31.2V
	Auxiliary power output	AC3.0Kw/230V
ENGINE	Engine model	2V78/SC690
	Max.power/Speed	14.5Kw/3600rpm
	Displacement(CC)	688
	Fuel capacity(L)	18
	Start method	Electric
WHOLE SET	Net weight(Kg)	113
	Outline dimension(mm)	850564600
	Protection/Insulation class	IP23

Gasoline Engine Driven Welding Machine MS*MF300 300A With DC3.0Kw Auxiliary Output 0

Gasoline Engine Driven Welding Machine MS*MF300 300A With DC3.0Kw Auxiliary Output 1

Gasoline Engine Driven Welding Machine MS*MF300 300A With DC3.0Kw Auxiliary Output 2

Gasoline Engine Driven Welding Machine MS*MF300 300A With DC3.0Kw Auxiliary Output 3
