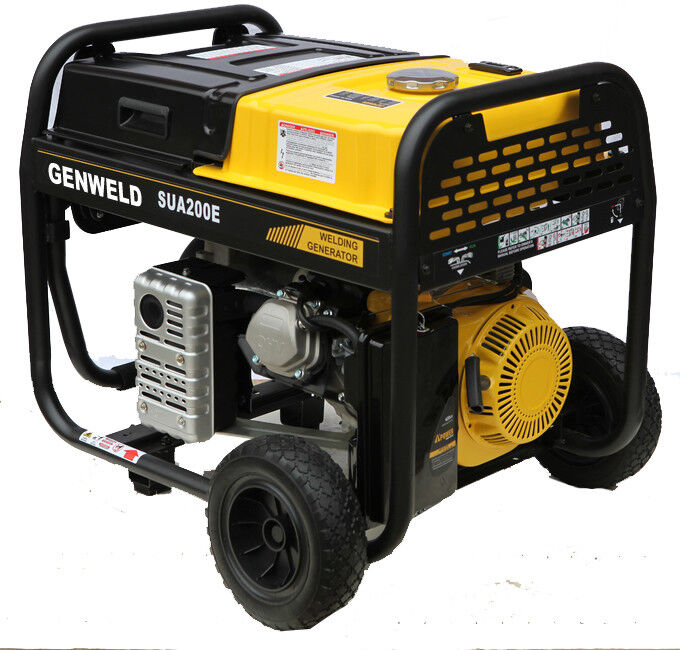

Civil Purpose Small Engine Driven Welder SUA200E 200A Gasoline MMA Welding Generator
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | GENWELD |
| Certification: | CE |
| Model Number: | SUA200E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 container |
|---|---|
| Price: | USD800-850/set |
| Packaging Details: | Seaworthy carton,770*540*625mm, Sets/20GP |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,, L/C |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Name: | Portable Welding Machine | Rated Power Output: | AC5.0Kw/3-phase, 3.8Kw/1-phase |
|---|---|---|---|
| Engine Brand & Type: | Senci/SC420 | Engine Power/Speed: | 8.2Kw/3000rpm |
| Fuel: | Gasoline | Start Method: | Recoil/Electric |
| Net Weight: | 101Kg | Packing Sizes: | 760*530*615mm |
| High Light: | diesel powered portable generator,gasoline welding machine |
||
Product Description
GENWELD SUA200E 200A Civil Purpose Gasoline MMA Welding Generator With AC 5Kw/triphase,3.8Kw/single phase Output Power
GENWELD SUA200E Welding Generator Specifications:
| Frequence | Hz | 50/60 |
| Tri-phase | V | 400 |
| Power factor | cos ⱷ | 1 |
| Max.power | Kw | 5.5 |
| Rated power | Kw | 5 |
| Rated current | A | 7.2 |
| Single phase | V | 230 |
| Power factor | cos ⱷ | 1 |
| Max.power | Kw | 4 |
| Rated power | Kw | 3.8 |
| Rated current | A | 16.5 |
| Duty cycle: 60% | A | 180A/27.2V |
| Duty cycle:35% | A | |
| Voltage fluctuation | % | ±5% |
| Net weight | Kg | 101 |
| Length | мм | 760 |
| Width | мм | 530 |
| Height | мм | 615 |
| Alternator | Brush synchro | |
| Alternator model | SC200 | |
| Protection class | IP | 21S |
| Engine | Senci | |
| Engine model | AP190FD | |
| Starting way | Recoil/Electric | |
| Fuel | 92/95 petrol | |
| Capacitor box | л | No |
| Fuel consumption(in 75% power) | л/ч | 3.8kW/2.5-2.7 |
| Noise power | Lwa/ dB(A) | 99.5 |
| dBA(Distance 7 meters) | LpAm/ db(A) | 79 |
| Standard configuration | ||
| F-type socket 25A 230V | terminal | |
| Socket 16A 5P IP44 | ||
| Fuel level sensor | yes | |
| Voltage regulation mode | AVR |
