Honda GX390 200A MMA / TIG Pipeline Welding Generator With DC 3kW / 220V Output

Basic Information
Place of Origin: China
Brand Name: Lianwai
Certification: CE
Model Number: H200T
Minimum Order Quantity: 5 SETS
Price: USD 1450-1650 Per Set
Packaging Details: Carton plus Pallet
Delivery Time: 20 work days
Supply Ability: 1000 SETS
Detail Information
Welding Process: MMA, TIG Welding Current: 50-200A
Duty Cycle: 60%/200A/28V Auxiliary Power Output: DC 3kW / 220V
Engine: 13HP Hona GX390 Fuel Tank: Gasoline 25L
Net Weight: 72kg Dimension: 720*698*735mm
Protection/Insulation Class: IP23
High Light:

Oil Gas Pipeline Welding Generator

,

200A Pipeline Welding Generator

,

Gasoline 25L Pipeline Welding Generator


Product Description



H200T 200A Honda Welding Generator



Introduction

H200T is an classic portable oil/gas pipeline welding generator, widely applied in China railway, CNPC, SINOPEC, and field welding construction without power. H200T can output 200A welding current and DC 3kW 220V auxiliary power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.



Characteristics

1. Welding performance: adopts rotating magnetic field to generate electricity, and the current is adjusted by excitation,high efficiency, accurate adjustment. Smooth current, good dynamic characteristics, fast response.



2. Reliability: innovated coaxial structure, omit medium links for transmission of power, Simple structure, reliable performance and low failure rate.



3. Engine:adopts Honda GX390 engine; meanwhile,fit oil protection system and decompression starting system device, overcome the engine damage caused by lack of engine oil and start difficulty in the low temperature state.



4. Auxiliary power: DC 220V/3KW output power, running the site powered tools(lights, grinds,ect)



Application

1. Power tower construction,
2. Water pipe network construction,
3. Highway,railway isolation network installation,
4. Emergency welding and repair operations for ocean-going ships
5. Construction and emergency repair of offshore oil drilling platforms,



Main specification sheet



Model H200T
Generator
Welding Type MMA, TIG
No-load Voltage (V) 89
Welding Voltage (V) 22-28
Welding Current (A) 50-200
Duty Cycle 60%
Auxiliary power(V) DC220/3kw
Engine
Power(hp) 13
Air Displacement (cc) 390
Valve Type Overhead Gas Valve
Ignition Method CDI
Oil Tank Capacity (L) 25
Oil Warning System Yes
Fuel Consumption(g/hp.hr) 230
Starting up Manual starting up
Complete Appliance
Dimension (mm) 720*698*735
Weight (Kg) 72

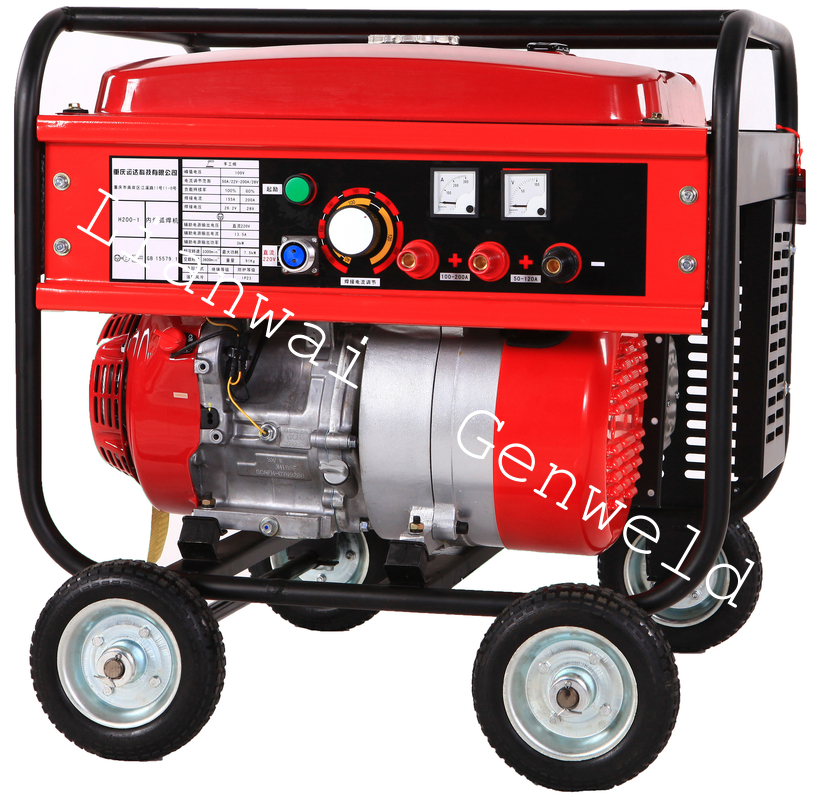

Product photos

Honda GX390 200A  MMA / TIG Pipeline Welding Generator With DC 3kW / 220V Output 0

Honda GX390 200A  MMA / TIG Pipeline Welding Generator With DC 3kW / 220V Output 1Honda GX390 200A  MMA / TIG Pipeline Welding Generator With DC 3kW / 220V Output 2
