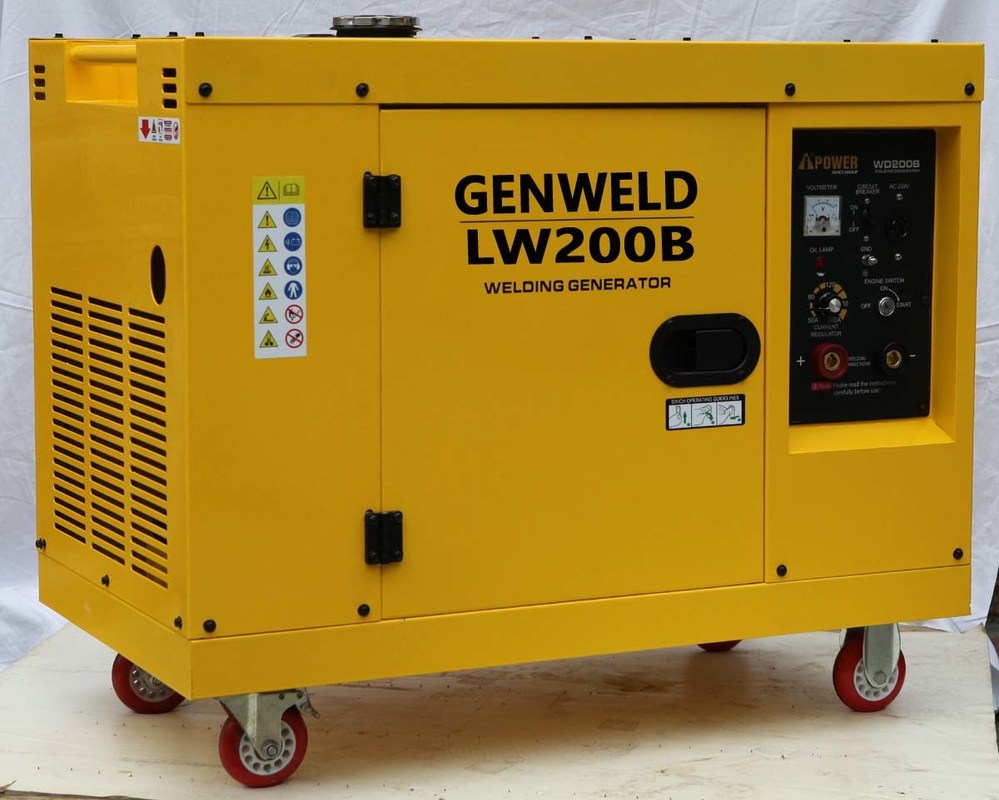

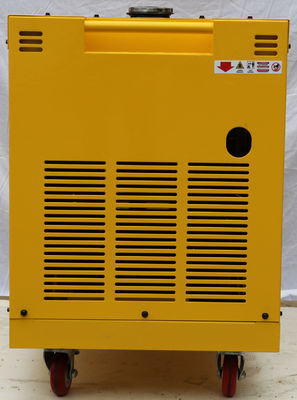

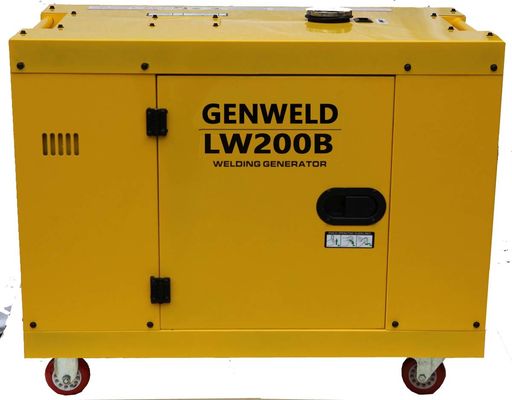

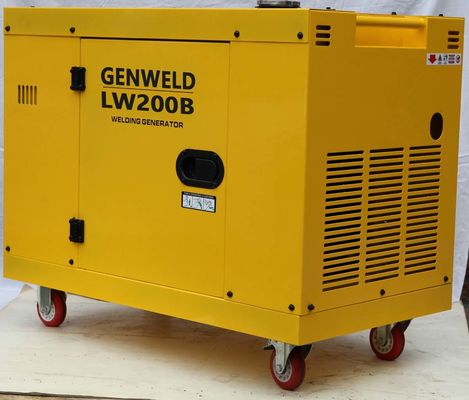

Portable Silent Diesel Welder Generator with 170A Welding Current 4.0kW Output Power and 35% Duty Cycle
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | GENWELD |
| Certification: | CE |
| Model Number: | WD200B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 container |
|---|---|
| Price: | USD935-950/set |
| Packaging Details: | Seaworthy carton,925*525*710mm, 48Sets/20GP |
| Delivery Time: | 45days after received prepayment |
| Payment Terms: | T/T,, L/C |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Rated Duty Cycle: | 35%/150A/26V | Engine Brand & Type: | Weima/WM192F |
|---|---|---|---|
| Auxiliary Rated Power Output: | 4.0KW / AC 240V Or 120V | Net Weight: | 130Kg |
| Packing Sizes: | 925*525*710mm | Welding Curent Range: | 50-170A |
| Highlight: | portable diesel welder generator,diesel powered portable generator |
||
Product Description
Small Engine Driven Welder Silent Diesel Welder Generator:
Introduction:
LW200B is a portable silent diesel welding generator, used for civil-purpose welding application, such as maintenance shop, farm, pasture,ect. WD200B can weld 1.6-4.0mm rod , and duty cycle:35%/150A/26V. It's noise level:75db(7 meters away from machine). WD200B is fit 4-wheels for easy movement.
Basic Specifications:
| Model | LW200B | |
| Generating section | Rated OCV(V) | 220(AC) |
| Rated power(kw) | 4.0 | |
| Max.power(kw) | 4.5 | |
| Rated current | 22.7 | |
| Welding section | Duty cycle(%) | 35% |
| OCV(V) | 75(DC) | |
| Rectifier | MDS | |
| Current range(A) | DC 50-170A | |
| Loaded voltage(V) | DC 22-26V | |
| Rated current/voltage(A/V) | 150A / 26V | |
| Engine section | Engine model | WM192F |
| Max.power/Speed(RPM) | 8.2kw/3600rpm | |
| Displacement(CC) | 499 | |
| Start method | Recoil/Electric | |
| Whole set | Tank capacity(L) | 16 |
| Protection/insulation level | IP23 | |
| Outline size(mm) | 925*525*710mm | |
| Carton packing size | 940*540*725mm | |
| Net/gross weight(kg) | 130/1135 | |
| Standard accessories | Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m | |
Want to Know more details about this product
