Diesel Welder Generator

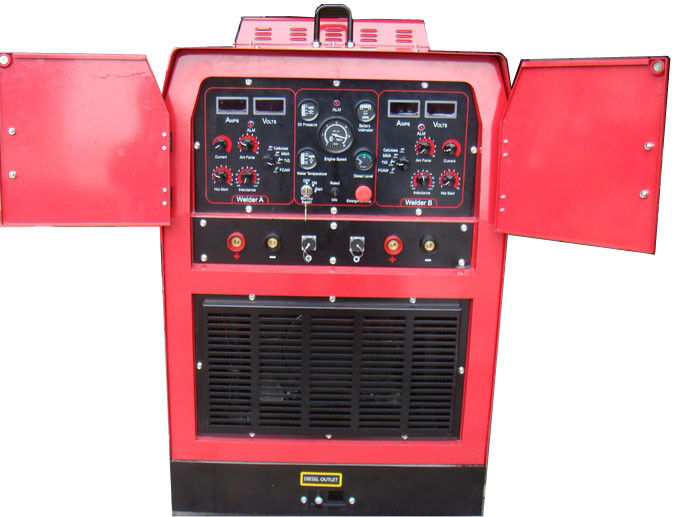

Created with Pixso. WD800 Portable Diesel Welder Generator with 400A Welding Current Electric Start and 32Kw Rated Power Output
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Rated Duty Cycle:
60%/500A/40V
Rated Power Output:
AC400V/32Kw/Tri-phase, AC230V/14Kw/Single Phase
Engine Brand & Type:
Deutz(Germany Technology)
Rated Power/Speed:
40Kw/1500rpm
Fuel:
Diesel
Start Method:
Electric Start
Net Weight:
1250Kg
Packing Size:
1860*850*1205mm
Application:
Maintenance And Repair, Construction, Pipeline
Packaging Details:
Wooden case, 1860*850*1205mm, 24 sets/40HC
Supply Ability:
100 sets per month
Highlight:

diesel driven welding machine

,

diesel stick welder

Product Description
WD800 Portable Diesel Welder Generator Electric Start 400Ax2 Dual Welding Machine
GENWELD 800A Oil & Gas Pipeline Dual Welding Generator

Professional welding generator with Stick/TIG/Flux-cored/Gouging/MIG/Cellulose welding processes for industrial applications.

Key Features
  • Deutz three-cylinder, water-cooled, low-speed diesel engine
  • Real-time monitoring and intellectualized processing
  • Non-interference dual position welding capability
  • Integrated MMA, TIG, FCAW, and carbon arc gouging functions
  • Advanced full bridge phase shift resonance oscillation soft switch DC-AC alternation
  • PWM control technology for fast response and excellent welding performance
  • Compatible with various wire feeders (Miller, Lincoln, or YH120)
  • Triphase 400V/32KW AC and single-phase 230V/14KW AC power output
  • Optional 2-4 wheel walking trailer for easy mobility
Welding Output Specifications
Double Welding Operation
Parameter Handle A Handle B
Welding Processes Stick | TIG | FCAW Stick | TIG | FCAW
Open Circuit Voltage (V) 75 75
Welding Current Range (A) 40-400 40-400
External Characteristic Curve Drop characteristic | Drop characteristic | Flat characteristic Drop characteristic | Drop characteristic | Flat characteristic
Single Welding Operation
Parameter Stick TIG FCAW
Open Circuit Voltage (V) 75 75 75
Welding Current Range (A) 40-500 40-500 40-500
External Characteristic Curve Drop characteristic Drop characteristic Flat characteristic
Generator Output
Rated Power: 32Kw (Max: 40Kw)
Excitation Type: AVR brushless excitation
Frequency: 50Hz
Phase & Output: Three phase: AC400V/32Kw | Single phase: AC230V/14Kw
Engine Specifications
Model: Deutz TD226B-3D (Germany technology)
Fuel: Diesel
Rated Power: 40Kw (Max: 45Kw)
Rated Speed: 1500 RPM
Warning System: Water temperature too high / Oil pressure too low / Rotate speed too fast
Fuel Capacity: 70L
Cooling Method: Water-cooled
Complete Appliance
Weight: 1250Kg
Dimensions: 1860*850*1205 mm
Protection Class: IP23
