Gasoline Welder Generator
Created with Pixso. WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved
  • name
  • name
  • name

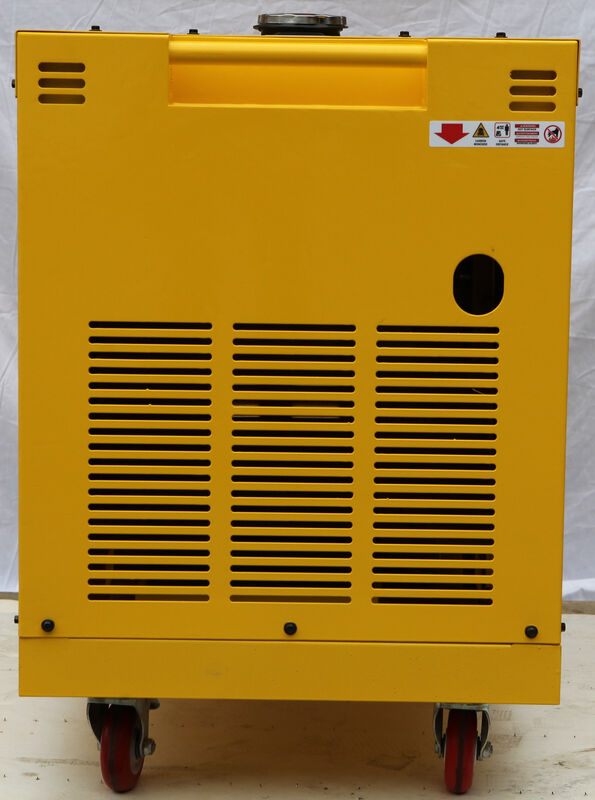

WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved

Brand Name: GENWELD
Model Number: WD200B
MOQ: 1 container
Price: USD1000-1100/set
Delivery Time: 20-30 days after received prepayment
Payment Terms: T/T,, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Rated Duty Cycle:
50%/170A/26.8V
Rated Power Output:
AC4.0Kw/240V Or 120V
Engine Brand & Type:
Weima/WM192F
Max. Power/Speed:
8.2Kw/3600rpm
Fuel:
Diesel
Start Method:
Recoil/Electric
Net Weight:
130Kg
Packing Sizes:
925*525*710mm
Packaging Details:
Seaworthy carton,925*525*710mm, 48Sets/20GP
Supply Ability:
1000 sets per month
Highlight:

portable ac arc welding machine

,

portable gasoline generators

Product Description

GENWELD WD200B 200A Silent Diesel MMA Welding Machine with AC 4.0Kw Auxiliary Output Power



GENWELD WD200B 200A Silent Diesel MMA Welding Machine Specifications:

Model WD200B
Generating section Rated OCV(V) 220(AC)
Rated power(kw) 5.0
Max.power(kw) 5.5
Rated current 22.7
Welding section Duty cycle(%) 50%
OCV(V) 75(DC)
Rectifier MDS
Current range(A) DC 50-200A
Loaded voltage(V) DC 22-28V
Rated current/voltage(A/V) 170A / 26.8V
Engine section Engine model WM192F
Max.power/Speed(RPM) 8.2kw/3600rpm
Displacement(CC) 499
Start method Recoil/Electric
Whole set Tank capacity(L) 16
Protection/insulation level IP23
Outline size(mm) 925*525*710mm
Carton packing size 940*540*725mm
Net/gross weight(kg) 130/1135
Standard accessories Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable-

WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved 0

WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved 1

WD200B 200A Silent Diesel Welder Generator , Portable MMA Welder CE Approved 2
