GENWELD WD200B 200A Silent Diesel Welder Generator with 4.0Kw Output Power and Engine Driven Welding
|
GENWELD WD200B 200A Silent Diesel Welder Generator with 4.0Kw Output Power and Engine Driven Welding
| Brand Name: | GENWELD |
| Model Number: | WD200B |
| MOQ: | 1 container |
| Price: | USD1000-1100/set |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,,L/C |
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Rated Duty Cycle:
Engine Driven Welder Generator
Rated Power Output:
AC4.0Kw/240V Or 120V
Engine Brand & Type:
Weima/WM192F
Max. Power/Speed:
8.2Kw/3600rpm
Fuel:
Diesel
Start Method:
Recoil/Electric
Net Weight:
130Kg
Packing Sizes:
925*525*710mm
Packaging Details:
Seaworthy carton,925*525*710mm, 48Sets/20GP
Supply Ability:
1000 sets per month
Highlight:
generator welding machine
,engine driven welder generator
Product Description

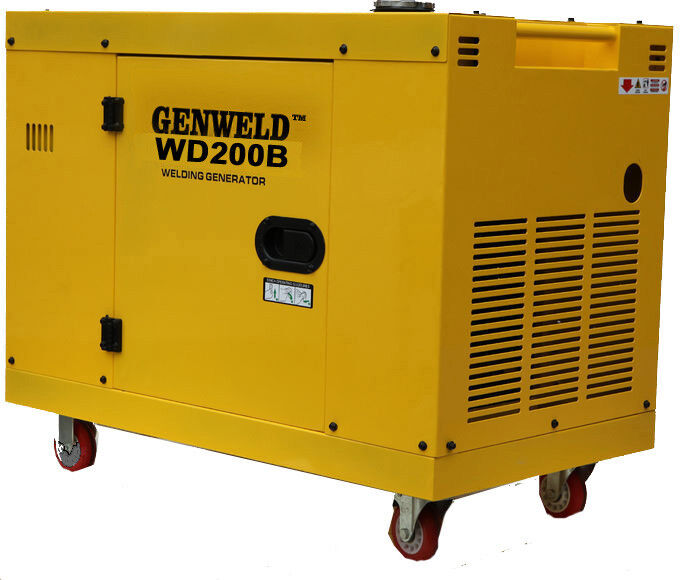

GENWELD WD200B 200A Engine Driven Welder Generator
Portable Silent 200A Diesel Driven Welding Machine with AC 4.0Kw/230V or 120V Output Power
Product Specifications
Generating Section
| Rated OCV (V) | 220 (AC) |
|---|---|
| Rated Power (kW) | 5.0 |
| Max Power (kW) | 5.5 |
| Rated Current | 22.7 |
Welding Section
| Duty Cycle (%) | 50% |
|---|---|
| OCV (V) | 75 (DC) |
| Rectifier | MDS |
| Current Range (A) | DC 50-200A |
| Loaded Voltage (V) | DC 22-28V |
| Rated Current/Voltage (A/V) | 170A / 26.8V |
Engine Section
| Engine Model | WM192F |
|---|---|
| Max Power/Speed (RPM) | 8.2kw/3600rpm |
| Displacement (CC) | 499 |
| Start Method | Recoil/Electric |
Complete Unit Specifications
| Tank Capacity (L) | 16 |
|---|---|
| Protection/Insulation Level | IP23 |
| Outline Size (mm) | 925*525*710mm |
| Carton Packing Size | 940*540*725mm |
| Net/Gross Weight (kg) | 130/1135 |
Standard Accessories
- Battery - 1 set
- Walking-wheel - 1 set
- Wheel-handlebar - 1 pc
- Electrode holder - 1 pc
- Hand shield - 1 pc
- Welding cable - 6m
