WD600 600A Pipeline Welding Machine Electric Start With Multi Process Welding

Basic Information
Place of Origin: Chongqing,China
Brand Name: Aipower
Certification: CE
Model Number: WD-600
Minimum Order Quantity: 5 sets
Price: USD7000-9000/set
Packaging Details: Wooden case, 1700*900*1200mm, 14 sets/20GP
Delivery Time: 30 days after received prepayment
Payment Terms: T/T,, L/C
Supply Ability: 100 sets per month
Detail Information
Name: Multi Process Welder Generator Rated Power Output: AC400V/25Kw/Tri-phase, AC230V/6.9Kw/Single Phase
Engine Brand & Type: Kubota/Yuchai/Weichai Prime Power/Speed: 36Kw/1500rpm
Fuel: Diesel Start Method: Electric Start
Net Weight: 790Kg Packing Size: 1580*800*1050mm
Application: Maintenance And Repair, Construction, Pipeline Welding Process: MMA/TIG/FCAW/Gouging/Cellulose
Welding Position: Dual Welding Positions
High Light:

dual welding machine

,

engine welder generator


Product Description

Aipower WD600 600A Oil&Gas Pipeline Diesel Welder With Multi-process Welding (MMA,TIG,FCAW,GOUGING,CELLULOSE)

WD600 Dual Welding Generator Features:

1. Can output 50/60Hz single/tri-phase power simultaneously during welding process

2. Installing famouse diesel engine, owns strong power, stable operation, low noise and low fuel consumption,etc.

3. Integrated with MMA, Cellulose, TIG, Gouging, FCAW and other welding process,owns wide application.

4. Wide current regulating range, can realize carbon arc gouging with 8mm(or above) carbon rod.

5. Single/double operation model is optional, double welding does not interfere with each other, use one machine simultaneously for welding, cutting, or operating lights or grinders, which saves space on a crowded jobsite or work truck.

6. Owns welding current/voltage parameter preset function,easy to regulation.

7. Fast dynamic response and excellent welding performance.

8. Powerful AC auxiliary output power,can drive common power tools and lighting facilities.

9. Meters of water temperature,oil pressure and fuel volume are separately displayed,easy to monitor.

10. Adopts one-side integrated maintenance design, easy to maintain.

11. Engine owns several alarm functions such as low oil pressure,high water temperature,low oil,etc;the generator/welder has low-voltage protection function.

12. Forklift holes and lifting rings for easy transfer and handling



WD600 Dual Welding Generator Specifications:

Model WD600 Dual Welding Generator
Weldingoutput
Dual welding(A & B) Handle A Handle B
Welding Processes Stick TIG Stick TIG FCAW
No-load voltage 75 75 75 75
Current Range 30-350A 14-50V
Welding Current(A) 350 300 350 300 350 300 350 300 350 300
Welding Voltage(V) 34 32 24 22 34 32 24 22 31.5 29
Duty Cycle(%) 60 100 60 100 60 100 60 100 60 100
External Charact Drop Flat
Single welding(A or B) Handle A Handle B
Welding Processes Stick TIG Stick TIG FCAW
No-load voltage 75 75 75 75
Current Range 30-350A 30-600A 14-50V
Welding Current(A) 300 350 300 350 500 600 500 600 500 600
Welding Voltage(V) 32 34 22 24 40 40 30 34 39 39
Duty Cycle(%) 100 60 100 60 100 50 100 60 100 60
External Charact Drop Flat
Generator output
Rated Power 30Kw(Max.33Kw) 30Kw(Max.33Kw)
Excitation Type AVR Brushless Excitation
Frequency 50Hz/60Hz
Phase Tri-phase Single Phase Tri-phase Single Phase
Output Voltage/Power AC400V/25Kw AC230V/6.9Kw AC400V/22Kw AC230V/6.9Kw
Engine
Model Yuchai 4D24TG Kubota V3300 (Made in Japan) Weichai WP2.3D40
Fuel Diesel Diesel
Rated Power prime 36Kw( standby 39.6Kw) prime 32.1Kw( standby 35.3Kw) prime 36Kw( standby 40Kw)
Rated Speed 1500r/min 1800r/min 1500r/min
Emission standard EU STAGE Ⅲ
Warning Type Water Temperature /Oil Pressure/Battery charge
Fuel Capacity 70L
Cooling Method Water-cooled
Fuel Consumption 6.8L/hr
Complete appliance
Weight 790Kg
Dimension(mm) 1580(L)×800(W)×1050(H)
Protection Class IP23

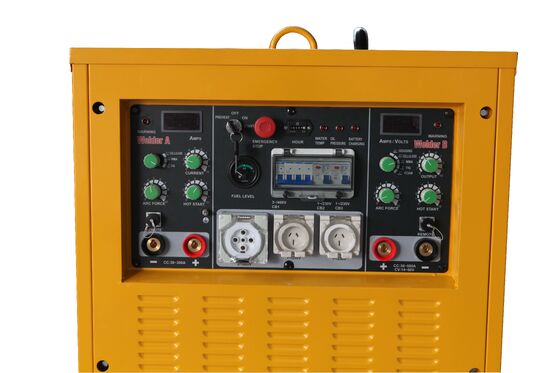

WD600 600A Pipeline Welding Machine Electric Start With Multi Process Welding 0 WD600 600A Pipeline Welding Machine Electric Start With Multi Process Welding 1
