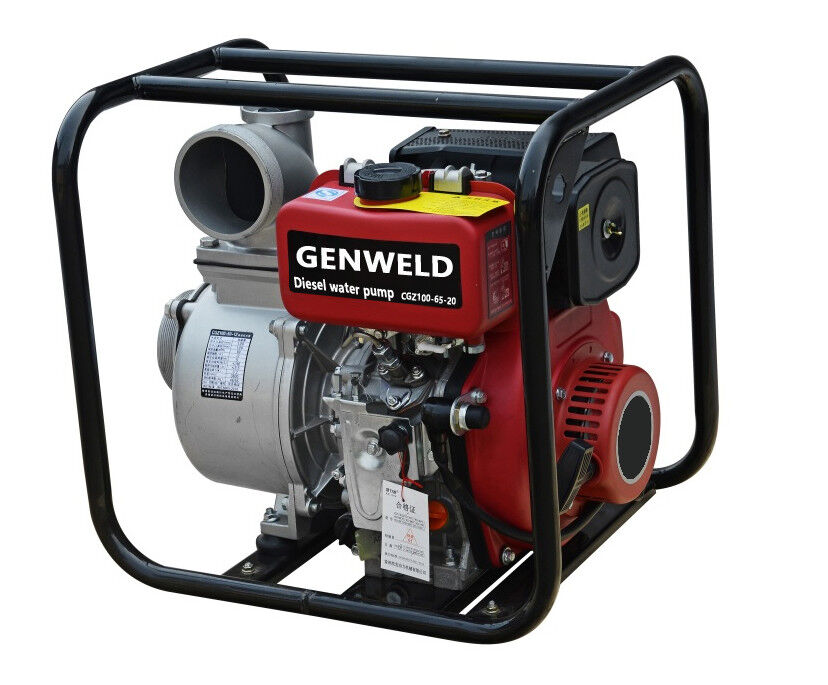

GENWELD CGZ100-65-20 Diesel water pump
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | GENWELD |
| Certification: | CE |
| Model Number: | CGZ100-65-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Packaging Details: | Seaworthy carton,610*470*480mm, 225Sets/20GP |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,, L/C |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Rated Duty Cycle: | 60%/120A/24.8V | Rated Power Output: | AC2.5Kw/240V Or 120V |
|---|---|---|---|
| High Light: | petrol welding machine,stick welder generator |
||
Product Description
GENWELD CGZ100-65-20 Diesel water pump
| Specification | basic state |
| model | CGZ100-65-20 |
| type | Overhead, four-stroke, air-cooled |
| Bore X Stroke | 88X75mm |
| Piston displacement (L) | 0.456 |
| Calibration speed | 3600/min |
| fuel tank volume | 5L |
| Lubrication method | Pressure combined with splash |
| fuel grade | No. 0 |
| Engine oil grade | SAE10W30 or above class CC |
| Start method | Recoil type hand start/electric start |
| Pump form | self-priming pump |
| Inlet diameter (mm) | 100 |
| Outlet diameter (mm) | 100 |
| Specified flow (m³/h) | 65 |
| Specified head (m) | 20 |
| Specified self-priming height (m) | 5 |
| Specified self-priming time (s) | <160 |
| match power | 186F/188F |
| Matching power (KW) | 7.2 |
| Packaging size (mm) | 655*490*630 |
| Net weight/KG | 66KG/76KG |
| Gross weight/KG | 67KG/77KG |
