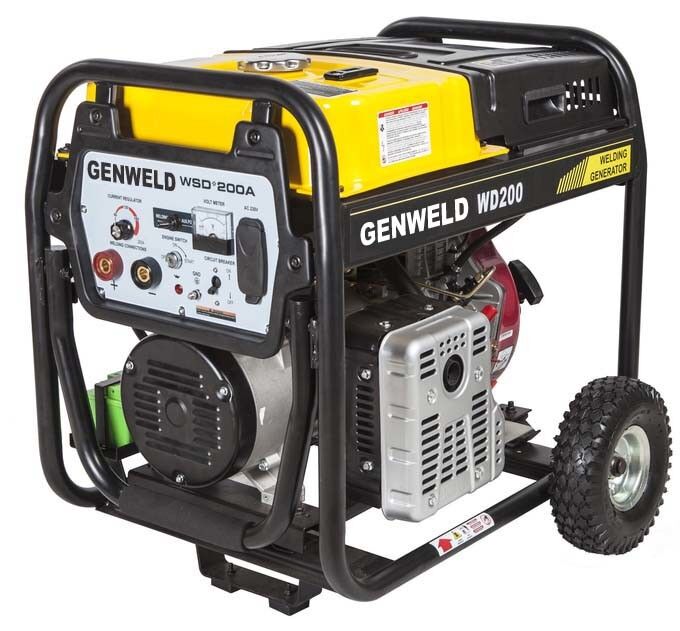

Civil Proposed Diesel Welder Generator WD200A Diesel Driven Welding Machine
| Brand Name: | GENWELD |
| Model Number: | WD200A |
| MOQ: | 1 container |
| Price: | USD767-800/set |
| Delivery Time: | 20-30 days after received prepayment |
| Payment Terms: | T/T,,L/C |
Detail Information
Place of Origin:
Chongqing,China
Certification:
CE
Name:
Diesel Powered Welder Generators
Rated Power Output:
AC2.0Kw/240V Or 120V
Engine Brand & Type:
Weima/WM192FE
Max. Power/Speed:
8.2Kw/3600rpm
Fuel:
Diesel
Start Method:
Recoil/Electric
Net Weight:
118Kg
Packing Sizes:
770*545*675mm
Packaging Details:
Seaworthy carton,770*545*675mm , Sets/20GP
Supply Ability:
1000 sets per month
Highlight:
diesel driven welding machine
,diesel stick welder
Product Description
GENWELD WD200A Civil Purposed Diesel MMA Welding Generator with AC 2.0Kw Output Power
GENWELD WD200A Civil Purposed Diesel MMA Welding Generator Specifications:
| Model | WD200A | |
| Generating section | Rated OCV(V) | 220(AC) |
| Rated power(kw) | 2.0 | |
| Max.power(kw) | 2.5 | |
| Rated current | 9.1A | |
| Welding section | Duty cycle(%) | 35% |
| OCV(V) | 56(DC) | |
| Rectifier | Diode | |
| Current range(A) | DC 50-200A | |
| Loaded voltage(V) | DC 22-28V | |
| Rated current/voltage(A/V) | 170A / 26.8V | |
| Engine section | Engine model | WM192FE |
| Max.power/Speed(RPM) | 8.2kw/3600rpm | |
| Displacement(CC) | 499 | |
| Start method | Recoil/Electric | |
| Whole set | Tank capacity(L) | 18 |
| Protection/insulation level | IP21S | |
| Outline size(mm) | 760*530*660mm | |
| Carton packing size | 770*545*675mm | |
| Net/gross weight(kg) | 118/123 | |
| Standard accessories | Battery--1 set,walking-wheel--1 set,wheel-handlebar--1 pc,electrode holder--1 pc,hand shield--1 pc,welding cable--6m | |
