Created with Pixso. 500A Dual Welding Pipeline Welding Machine Diesel Welding Generator with 20kW Auxiliary Output for Oil and Gas Field Construction
Detail Information
Place of Origin:
Chongqing, China
Certification:
CE
Product Model:
LWG500
Welding Current:
30-500A
Welding Process:
MMA, Cellulose, TIG, FCAW
Duty Cycle:
MMA:500A/40V/60%; TIG:500A/30V/60%; FCAW:500A/39V/60%
Auxiliary Output Power:
AC Tri-phase/20kW/400V, AC Single-phase/6.9kW/230V
Engine Brand:
Perkins/Yanmar/Weichai
Packing Size:
1860*850*1205mm
Net Weight:
760kg
Packaging Details:
Carton plus fumigation-free wooden cage, Packing dimension:1835*925*1135mm
Supply Ability:
50 SETS PER MONTH
Highlight:

20kW/400V Diesel Welding Generator

,

7kW/230V Diesel Welding Generator

,

760kg Pipeline Welding Generator

Product Description
Product Overview

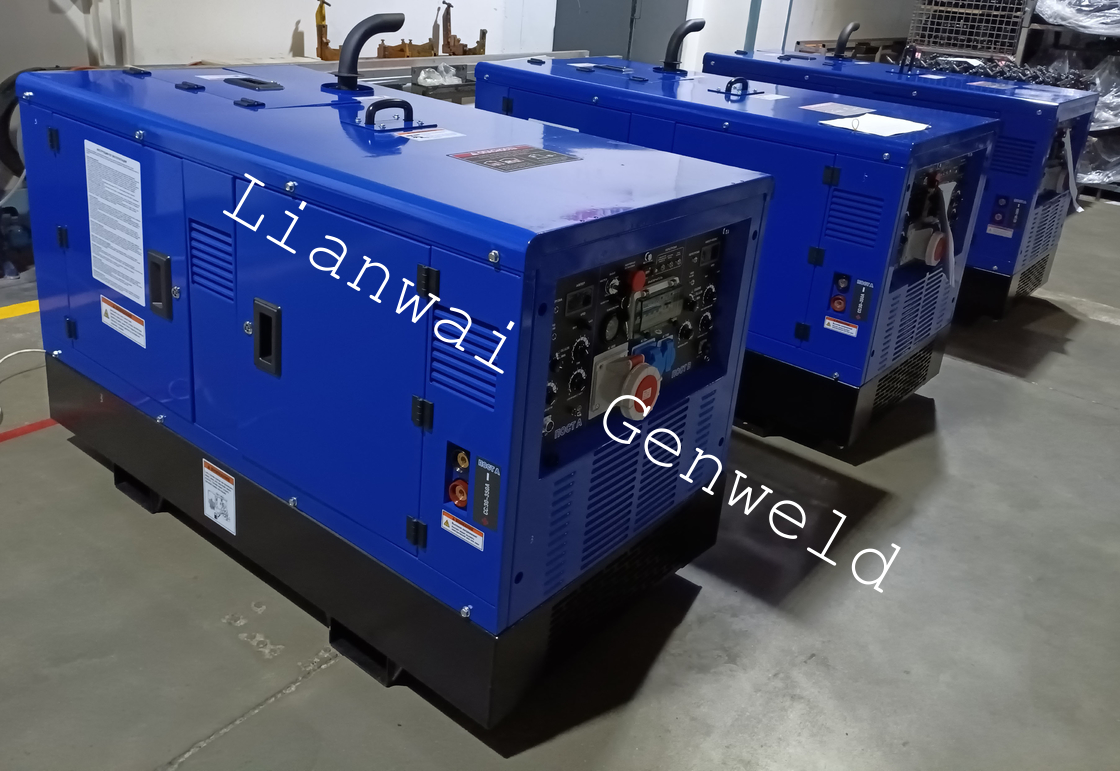

The LWG500 welding generator is engineered primarily for field oil and gas pipeline construction operations. It is a diesel-driven welding generator offering multiple welding characteristics and processes — including MMA, cellulose down-welding, TIG, FCAW, and gouging. In addition to its welding capability, the unit provides auxiliary power output: three-phase 20 kW / 400 V and single-phase 7 kW / 230 V AC, sufficient to run a wide range of powered tools such as grinders, drills, lamps, and inverter welders.

Key Features
  • Available as a single-position welding machine with MMA / TIG / FCAW functions, or as a dual-position welding machine with MMA plus FCAW functions, giving customers flexible configuration choices.
  • FCAW supports the "filling & covering" welding process — fast, effective, and time-saving. Compatible with Lincoln, Miller, and Yunda wire feeders.
  • Strong auxiliary power: 20 kW output for three-phase and 7 kW output for single-phase applications.
  • Adopts advanced inverter soft-switch technology, PWM control technology, and negative-feedback control technology, delivering excellent dynamic quality and welding performance across the full voltage and current regulation range.
  • Current and voltage parameter preset function: the matched wire feeder can display preset and actual current values and adjust welding current for easy operation.
Technical Specifications
Welding — Dual Welding (Handles A & B)
Dual welding performance data
Parameter Handle A — Stick Handle A — TIG Handle B — Stick Handle B — TIG Handle B — FCAW
No-load Voltage (V) 76 76 76 76 —
Current Range (30–350 A) * 2 14–50 V
Welding Current (A) 350 / 300 350 / 300 350 / 300 350 / 300 350 / 300
Welding Voltage (V) 34 / 32 24 / 22 34 / 32 24 / 22 31.5 / 29
Duty Cycle (%) 60 / 100 60 / 100 60 / 100 60 / 100 60 / 100
External Characteristic Drop Flat
Welding — Single Welding (Handle A or B)
Single welding performance data
Parameter Handle A — Stick Handle A — TIG Handle B — Stick Handle B — TIG Handle B — FCAW
No-load Voltage (V) 76 76 76 76 —
Current Range 30–350 A 30–350 A 30–600 A 30–600 A 14–50 V
Welding Current (A) 300 / 350 300 / 350 400 / 500 400 / 500 400 / 500
Welding Voltage (V) 32 / 34 22 / 24 36 / 40 26 / 30 34 / 39
Duty Cycle (%) 100 / 60 100 / 60 100 / 60 100 / 60 100 / 60
External Characteristic Drop Flat
Generator
Generator specifications
Rated Power 30 kW (Max. 33 kW)
Excitation Type AVR Brushless Excitation
Frequency 50 Hz / 60 Hz
Phase Tri-phase / Single Phase
Output AC 400 V / 25 kW (tri-phase); AC 230 V / 6.9 kW (single-phase)
Engine
Engine specifications
Parameter Yuchai 4D24TG Kubota V3300-T Weichai WP2.3D40
Fuel Diesel Diesel Diesel
Rated Power Rated 36 kW (Max. 39.6 kW) Rated / Max. 32.1 / 35.3 kW Rated 36 kW (Max. 40 kW)
Rated Speed 1500 r/min
Warning Type Water temperature / oil pressure / battery charge
Cooling Method Water-cooled
Whole Set
Complete unit specifications
Fuel Consumption 7.4 L/hr
Fuel Capacity 80 L
Protection Class IP23
Weight 850 kg
Dimensions (mm) 1600 * 820 * 1050

Note: In the welding tables, paired values indicate performance at 60% and 100% duty cycle respectively. Specifications are subject to change without notice.
