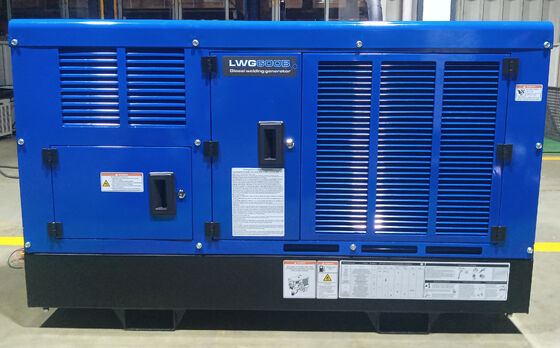

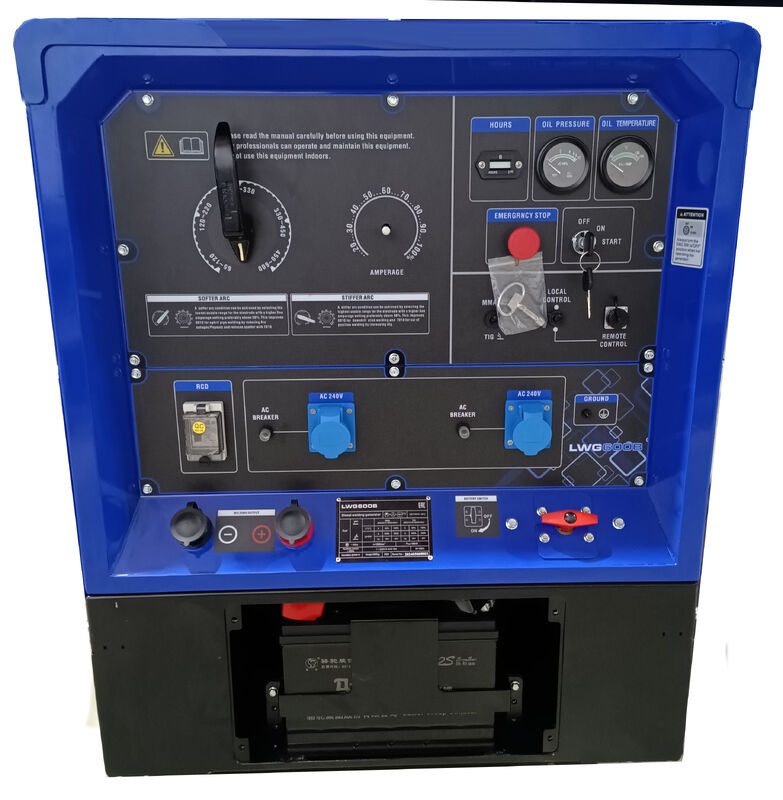

Powerful and Versatile Pipeline Welding Machine for Field-Based Work
Product Details:
| Place of Origin: | China |
| Brand Name: | GENWELD |
| Certification: | CE |
| Model Number: | LWG600B |
Payment & Shipping Terms:
| Minimum Order Quantity: | One set |
|---|---|
| Price: | USD 15000-20000 SET |
| Packaging Details: | Carton plus fumigation-free wooden cage, Packing dimension:1835*925*1135mm |
| Delivery Time: | 8-10WEEKS AFTER RECEIVED 30% PREPAYMENT |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Welding Process: | MMA(Cellulose Down-welding)/TIG/Gouging | Engine: | 4 Cylinders, Air-cooled |
|---|---|---|---|
| Generator Output: | Single Phase 240V/4.5Kw | Welding Current Range: | 65-600A |
| Electrode Code: | 2.5-10mm | Net Weight: | 880KG |
| Protection Class: | IP23 | Model: | PW-2000 |
| Cooling Method: | Air Cooling | Packing Size: | 1835×925×1135mm |
| Fuel Type: | Diesel | Fuel Tank: | 100L |
| Engine Brand: | Beinei F4L912 | Rated Duty Cycle: | 60%/600A/44V |
Product Description
Product Introduction:
For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions,LWG600B Air-cooling Welding Generator is the most reliable, versatile machine available to keep your worksite equipment fully functional and make you more productive throughout the day.
Specification Sheet:
| Welding parameters | No-load voltage (V) | DC 90 | |
| Welding current adjustment range (A) | 65-600 | ||
| Rated voltage (V) | 44 | ||
| Rated duty cycle (%) | 60 | ||
| Electrode code (mm) | 2.5-10 | ||
| Auxiliary power output parameters | Number of phases | Single | |
| Rated frequency (HZ) | 60 | ||
| Rated voltage (V) | 120 | 240 | |
| Rated power (KW) | 2.0 | 4.1 | |
| Power factor | 1 | ||
| Rated current | 17 | 17 | |
| Engine parameters | Brand | Beinei | |
| Model | F4L912 | ||
| Engine type | Four-cylinder, in-line, naturally aspirated, air-cooled, four-stroke | ||
| Bore*stroke (mm) | 100*120 | ||
| Displacement (cc) | 3770CC | ||
| Compression ratio | 17:01 | ||
| Power/speed | Max:42kW/1800rpm；Rated:38kW/1800rpm | ||
| Max:35kW/1500rpm；Rated:32kW/1500rpm | |||
| Whole unit | Fuel tank | 100liters | |
| Dimension | 1724*823*1058mm | ||
| Weight | 880kg | ||
| Protection class | IP23 | ||
