3kW 220V Engine Driven Arc Welder Diesel Welding Generator 210A

Basic Information
Place of Origin: China
Brand Name: Lianwai
Certification: CE
Model Number: LWG230C
Minimum Order Quantity: 5 SETS
Packaging Details: Carton
Delivery Time: 20 work days
Supply Ability: 1060 SETS
Detail Information
Welding Process: MMA Welding Current: 65-210A
Duty Cycle: 60%/210A/28.4V Auxiliary Power Output: AC 3kW / 220V / 50Hz
Net Weight: 90kg Dimension: 740x560x650mm
Fuel: Diesel Protection/Insulation Class: IP23
High Light:

MMA Diesel Welding Generator

,

Diesel Welding Generator 210A

,

499cc Engine Diesel Welding Generator


Product Description

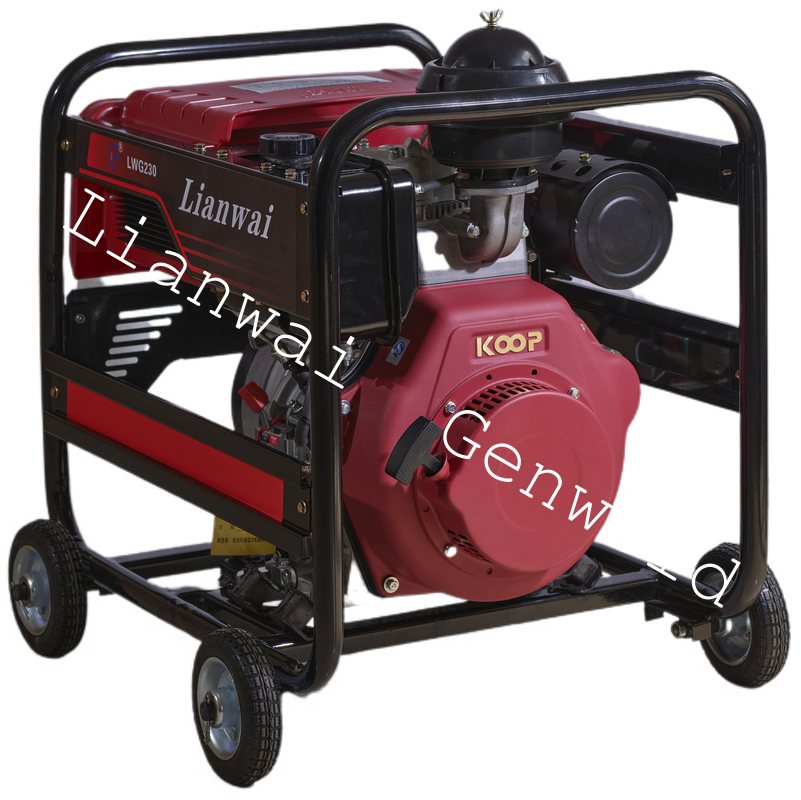

LWG230C 210A Diesel Welding Generator



Introduction

LWG230C is an industrial portable diesel welding generator, which can output 230A welding current and 220V/50Hz single-phase 3KVA auxiliary AC power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.



Characteristics

1. IF power generation technology,
2. Welding current and thrust current are steplessly adjustable.
3. Low-hydrogen basic electrode has good arc performance
4. Beside MMA welding, it also has TIG function (scratch arc ignition type).
5. Auxiliary output: Single-phase, AC 3kW/220V/50Hz.



Application

1. Oil/gas/water pipeline welding,
2. Maintenance and repair of highway guardrails and power facilities,
3. Repair of fences and agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. Emergency power supply



Main specification sheet

Product Model LWG230C
Welding No-load voltage 65-70
Welding current range 40-210A
Duty cycle 60%/210A/28.4V
Electrode diameter ¢2.5-¢5.0mm
Generating Rated generating output power AC 3kW/220V/50Hz
Engine Brand KOPO
Model KD192F
Engine power(kW) 8.6
Max rpm 3600
Starting E-start
Lubricant alarm system Yes
Emission(cc) 499
Fuel capacity(L) 5.5
Lubricant capacity(L) 1.65
Fuel consumption(g/k.h) 280
Whole set Insulation Class H level 180℃
Net weight(kg) 90
Overall Dimensions(L×W×H) 740x560x650mm



3kW 220V Engine Driven Arc Welder Diesel Welding Generator 210A 0

3kW 220V Engine Driven Arc Welder Diesel Welding Generator 210A 1

3kW 220V Engine Driven Arc Welder Diesel Welding Generator 210A 2

3kW 220V Engine Driven Arc Welder Diesel Welding Generator 210A 3
