600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power

Basic Information
Place of Origin: Chongqing,China
Brand Name: Aipower
Certification: CE
Model Number: WD600
Minimum Order Quantity: 5 sets
Price: USD7600-12000/set
Packaging Details: Wooden case, 1700*900*1200mm, 14 sets/20GP
Delivery Time: 50 days after received prepayment
Payment Terms: T/T,, L/C at sight
Supply Ability: 100 sets per month
Detail Information
Rated Welding Duty Cycle: 60%/500A/30V Generator Output: AC400V/30Kw/Tri-phase, AC230V/6.9Kw/Single Phase
Engine Brand: Perkins, Kubota,Yanmar,Weichai,Yuchai Engine: 4 Cylinders, Water-cooled
Fuel Type: Diesel Start Method: Electric Start
Net Weight: 850Kg Packing Size: 1600*820*1050mm
Application: Oil/gas Pipeline Welding, Steel Structure Welding, Rig Maintenance,mine Maintenance, Shipyard Welding Process: MMA/TIG/FCAW/Gouging/Cellulose
Protection Class: IP23
High Light:

generator welding machine

,

engine driven welder generator


Product Description

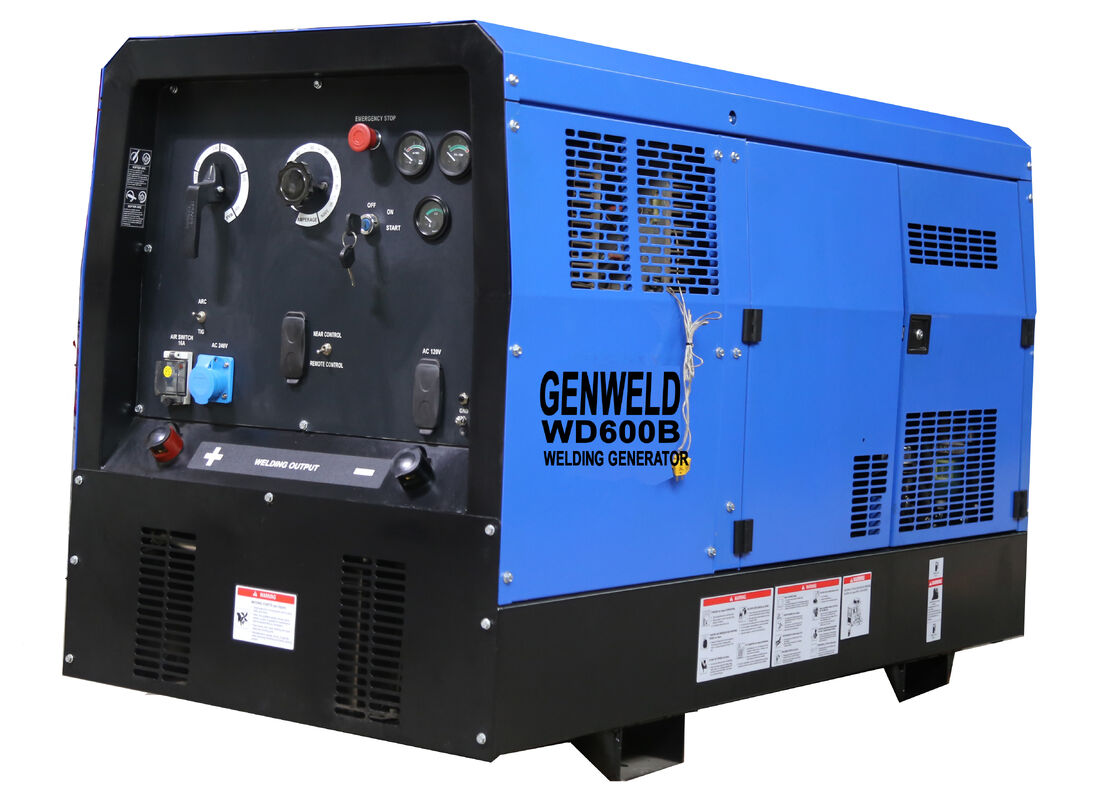

         WD600 Dual Welding Generator



         Introduction:

i

          WD600 Dual Welding Generator is an industrial welding workstation integrating multi-welding processes and power generation.This machine                adopts famous diesel engines(Cummins,Perkins, Kubota, Weichai, Yuchai,etc) as power,with strong power, stable & reliable operation, low                  noise and low fuel consumption, and good after sale service.



    Characteristics on welding function:



    1. It has two welding modes:single-handle welding or double-handles welding simultaneously without interference each other.



    2. The dual-handles welding currents can be connected in parallel to get greater current & power output.



    3. WD600 has a wide range of welding current/voltage, CC: 30-500A, 500A / 40V @ 60%, suitable for carbon arc-air gouging with 8mm or               above  carbon rods. CV: 14-50V 500A / 39V @ 60%.



    4. WD600 can be matched with Miller Lincoln or Senci wire feeders to operate FCAW process. SC100 wire feeder can preset the wire feed                 speed and welding voltage. When in MMA gear, welding current can be preset and adjusted.



    5. For long distance welding, it’s easy to adjust welding current/voltage with remoter on site, needn’t return to the machine and operate on the         control panel.



    6. The preset value and actual value of welding current / voltage can be displayed in real time, and the preset and actual output accurately match, which is convenient for welding specification adjustment.



    7.  Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, enjoys excellent dynamic quality and welding performance within full voltage /current regulation range.



   Characteristics in power generation:



   1. WD600 can output 3 ~ 400V / 20kW, 1 ~ 230V / 6.9kW AC power, and can drive external inverter welder, air compressor, water pump, angle grinder and other common electric tools & lighting equipment on field site.



   2. The water temperature, oil pressure, and oil quantity of the diesel engine are displayed with separate pointer meter, and the running status of the engine is clear at a glance.



   3. WD600 adopts the design concept of single-side centralized maintenance, which make maintenance faster &convenient.



   4.WD600 has forklift holes at the bottom and a lifting hook on the top,which facilitate transfer and transportation.



   Application:



   WDF600 is mainly suitable for industrial-welding and power generation in the field without power source. For example, field oil/gas pipeline welding construction, municipal engineering rescue, field power engineering construction, Gulf shipbuilding, Offshore oil drill maintenance, etc.



  WD600 Dual Welding Generator Specifications:





Model WD600 Dual Welding Generator
Weldingoutput
Dual welding(A & B) Handle A Handle B
Welding Processes Stick TIG Stick TIG FCAW
No-load voltage 75 75 75 75
Current Range 30-350A 14-50V
Welding Current(A) 350 300 350 300 350 300 350 300 350 300
Welding Voltage(V) 34 32 24 22 34 32 24 22 31.5 29
Duty Cycle(%) 60 100 60 100 60 100 60 100 60 100
External Charact Drop Flat
Single welding(A or B) Handle A Handle B
Welding Processes Stick TIG Stick TIG FCAW
No-load voltage 75 75 75 75
Current Range 30-350A 30-600A 14-50V
Welding Current(A) 300 350 300 350 500 600 500 600 500 600
Welding Voltage(V) 32 34 22 24 40 40 30 34 39 39
Duty Cycle(%) 100 60 100 60 100 50 100 60 100 60
External Charact Drop Flat
Generator output
Rated Power 30Kw(Max.33Kw) 30Kw(Max.33Kw)
Excitation Type AVR Brushless Excitation
Frequency 50Hz/60Hz
Phase Tri-phase Single Phase Tri-phase Single Phase
Output Voltage/Power AC400V/25Kw AC230V/6.9Kw AC400V/22Kw AC230V/6.9Kw
Engine
Model Yuchai 4D24TG Kubota V3300 (Made in Japan) Weichai WP2.3D40
Fuel Diesel Diesel
Rated Power prime 36Kw( standby 39.6Kw) prime 32.1Kw( standby 35.3Kw) prime 36Kw( standby 40Kw)
Rated Speed 1500r/min 1800r/min 1500r/min
Emission standard EU STAGE Ⅲ
Warning Type Water Temperature /Oil Pressure/Battery charge
Fuel Capacity 70L
Cooling Method Water-cooled
Fuel Consumption 6.8L/hr
Complete appliance
Weight 790Kg
Dimension(mm) 1580(L)×800(W)×1050(H)
Protection Class IP23







600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 0



600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 1





600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 2



600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 3



600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 4



600A Dual Oil/Gas Pipeline Welding Generator With 20kW/400V Output Power 5
