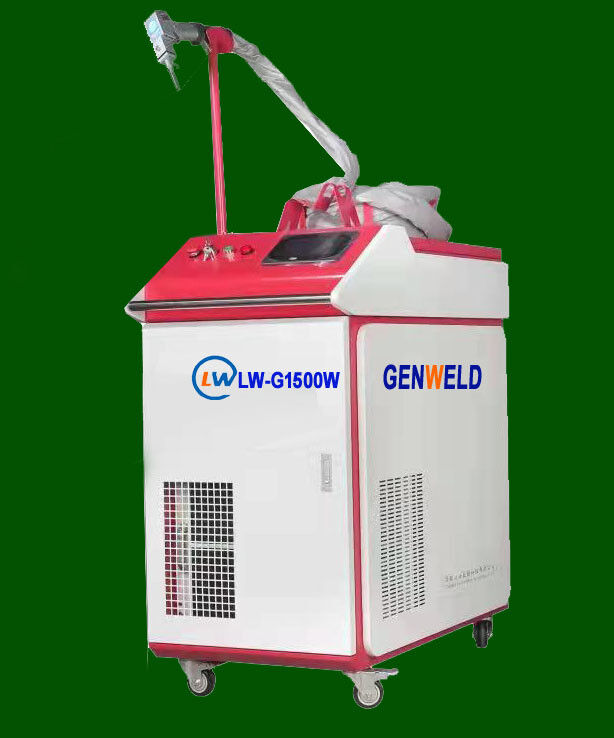

1500W Handheld Laser Welding Machine

1500W Handheld Laser Welding Machine

Product Details:

Brand Name: GENWELD
Model Number: LW-G1500W

Payment & Shipping Terms:

Minimum Order Quantity: 10
Payment Terms: MoneyGram
Get Best Price Contact Now

Detail Information

Watt: 1500W Name: Handheld Laser Welding Machine
Power Adjustment Range: 10%-100% Working Mode: Continuous/modulation
Laser Wavelength: 1080nm Modulation Frequency: 20KHZ
High Light:

1500W Handheld Laser Welding Machine

,

1080nm Continuous Laser Welding Machine

,

20KHZ Modulation Laser Welding Machine

Product Description

The LW-G1500W handheld laser welding machine consists of a laser unit and a welding unit. It replaces the previous fixed optical path, is flexible and convenient, and has a longer welding distance. It implements flexible non-contact welding on hard-to-access parts, achieving high efficiency, high precision, and high performance.

It is mainly used for welding large workpieces with fixed positions such as inner right angles, outer right angles, and plane welds. The heat affected area during welding is small, the deformation is small, the penetration depth is large, and the welding is firm.

Equipment overview
Rated input power Three-phase 220V±5%/50Hz
Output power 1500W
Power adjustment range 10%-100%
Power stability ≤±3%
Continuous working time 24 hours
Working mode: continuous/modulation
Environmental requirements Temperature 5-40℃, humidity 10-90%
Laser wavelength 1080nm
Modulation frequency 20KHZ
Cooling method Water cooling (dual temperature and dual control)
Speed ​​ of light output 1 beam
Focus focal length 200mm
Collimation focal length 100mm
Minimum focus diameter D20 (≤0.4MM)
Welding head with coaxial shielding gas machine swing function
Automatic wire filler special for laser welding can be matched
Maximum power consumption 5.5KW
Water chiller parameters
Power supply system 220V±5%, 50Hz 40A
Cooling water flow 8L/min
Chiller ruler 600*1050*1210
Cooling capacity 5200W
