Handheld Laser Welding Machine
Product Details:
Place of Origin: | China |
Brand Name: | GENWELD |
Certification: | CE |
Model Number: | LW-JW15 |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 sets |
---|---|
Packaging Details: | Packing with form & carton, carton size: |
Delivery Time: | 15 work days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Laser Power: | 1500W | Laser Wavelength: | 1080(±10)nm |
---|---|---|---|
Electricity Demand: | 220V±10% / 50Hz / 60A | Whole Machine Power: | ≤8KW |
Plate Welding Penetration: | Carbon Steel: 0.5~3.9mm Stainless Steel: 0.5~3.7mm Galvanized Sheet: 0.5~3.8mm | Net Weight: | 220kg |
High Light: | Laser Welding Machine 120mm/s,Laser Welding Machine 1080nm,CE Galvanized Laser Welding Machine |
Product Description
1500kW Handheld Laser Welding Machine
Production Introduction

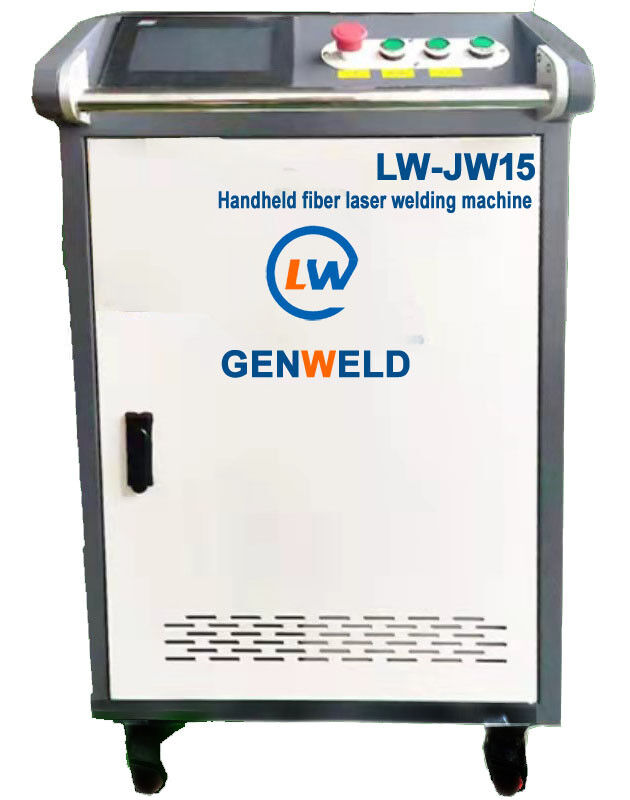

LW-JW15 handheld laser welding machine is a precision, high-speed laser welding equipment developed by Chongqing Lianwai Technology Co., Ltd. for the sheet metal processing industry to solve welding deformation & hard polishing of thin plates.
LW-JW15 adopts split photoelectric module design, optical module, electric module, control unit, drive unit, etc. can be directly
replaced, upgraded, and maintained at the client side, which is more convenient to use. Users can choose fibers with different core diameters according to different processing requirements to meet differentiated processing needs. It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc., for laser fine cutting, precision welding, etc.
Working Principle
Hand-held laser welding uses high-energy laser beams to locally heat the weldment with welding pulses, so that the energy diffuses into the material through heat conduction, and the material is melted to form a specific molten pool.
Applicable materials
Stainless steel, iron, aluminum and other metal materials.
Application range
Chassis cabinets, kitchen utensils, architectural decoration, shelf guardrails, stainless steel furniture, stainless steel processing, etc.
Technic Data Sheet
