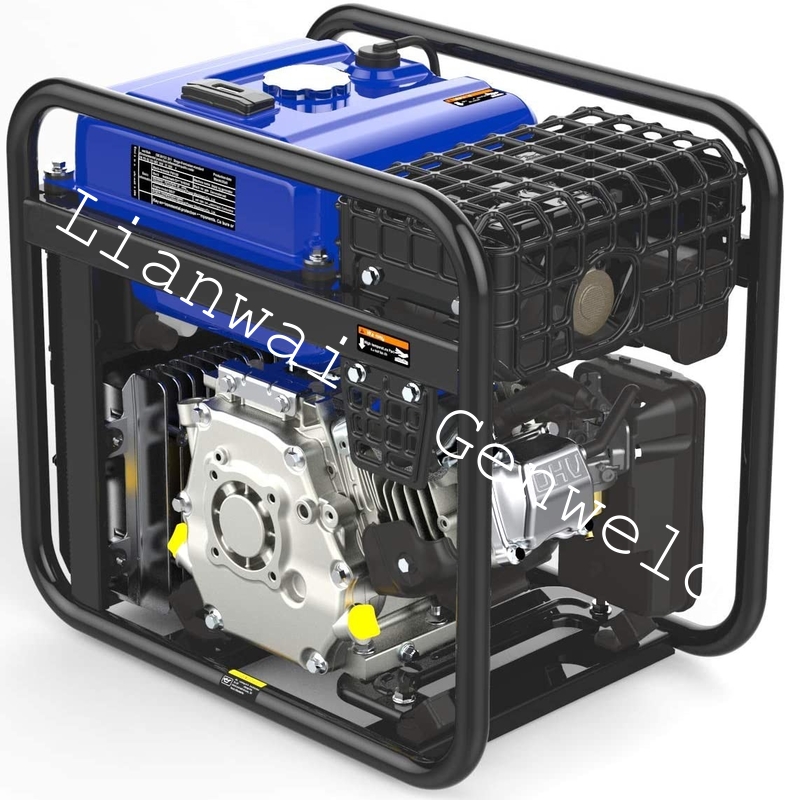

3.6kW AC 150A Portable Welder Generator IP23 With Gasoline Fuel
Product Details:
Place of Origin: | China |
Brand Name: | GENWELD |
Certification: | EPA |
Model Number: | FW150 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 SETS |
---|---|
Packaging Details: | Carton(550×390×540mm) |
Delivery Time: | 30 work days |
Supply Ability: | 1000 SETS |
Detail Information |
|||
Welding Process: | MMA | Welding Current: | 30-150A |
---|---|---|---|
Duty Cycle: | 100%/150A/26V | Electrode Dia.: | 1.6-4.0mm |
Auxiliary Power Output: | 3.6kW/240V/50Hz | Fuel: | Gasoline |
Protection/Insulation Class: | IP23 | Net Weight: | 38kg |
Dimension: | 530×348×490mm | ||
Highlight: | 150A Portable Welder Generator,3.6kW Portable Welder Generator,EPA Portable Welder Generator |
Product Description
FW150 150A Gasoline Welding Generator
Introduction
Characteristics
1. Can be used for welding and power generation, can continuous weld Ȼ1.6--Ȼ4.0mm electrodes, and rated output AC 3.6kW 240V 50/60 Hz auxiliary power.
2. Adopt digital inverter control technology, excellent welding performance
3. Medieum frequency permanent magnet generator,90% generating efficiency
4. Small size, only 38kg, easy to transport
Application
1. Maintenance and repair of highway guardrails and power facilities,
3. Maintenance of fences & agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials in field.
6. House emergency power supply
Main specification sheet | |||
Welding | Welding type | Inverter welding | |
Open circuit voltage (V) | 60 | ||
Current adjustment range | 40~150 | ||
Welding current (A) | 150 | 150 | |
Welding voltage (V) | 27.6 | 26 | |
Duty cycle | 60% |
100% |
|
Welding electrode diameter | 1.6-4.0mm | ||
Generator | Rated output power | 3.6KW | |
Max. output power | 4.0KW | ||
Rated output voltage | 240VAC | ||
Rated output current | 13A | ||
Frequency | 50/60Hz | ||
Power factor | 1 | ||
Engine | type | GB270B-2 | |
Valve layout | OHV | ||
Displacement | 272cc | ||
Type of ignition system | TCI | ||
Start method | Pull start | ||
Oil volume | 1.0L | ||
Whole set | Cooling method | Forced air | |
Dimension.(mm) | 530×348×490 | ||
Fuel volume | 9.6L | ||
Weight (net) | 38Kg | ||
Protection/Insulation class | IP23/F | ||
Quotation:USD800/set FOB Shanghai,mini order:10 sets | |||
Warranty:1 year | |||
Payment term:30% T/T advance, balance paid off before shipment. | |||
Delivery term:30 days after received 30% prepayment. |
