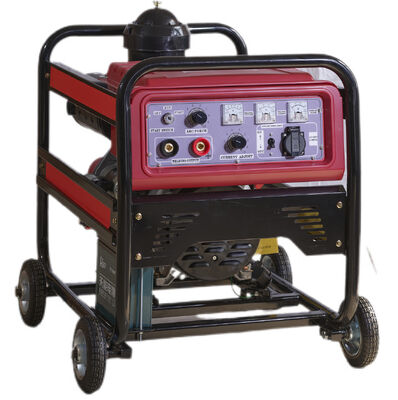

250A Portable Pipeline / Steel Structure Diesel Welding Generator With AC 3kW / 220V Output

Basic Information
Place of Origin: China
Brand Name: Lianwai
Certification: CE
Model Number: LWG250C
Minimum Order Quantity: 5 SETS
Price: USD 1100-1150 per set
Packaging Details: Carton
Delivery Time: 20 work days
Supply Ability: 1000 SETS
Detail Information
Welding Process: MMA Welding Current: 60-250A
Duty Cycle: 60%/230A/29.2V Auxiliary Power Output: AC 3kW / 220V / 50Hz
Net Weight: 95kg Dimension: 740x560x650mm
Fuel: Diesel Protection/Insulation Class: IP23
High Light:

3600rpm Engine Driven Arc Welder

,

E Start Diesel Welding Generator

,

3KVA Engine Driven Arc Welder


Product Description



LWG250C Rated 230A Diesel Welding Generator



Introduction

LWG250C is an industrial portable diesel welding generator, which can output Rated 230A welding current and Single-phase 3kW / 220V / 50Hz auxiliary power. Due to its small size, light weight, convenient movement and self-generation, it is ideal for welding in places without power supply and field construction operations.



Characteristics

1. IF power generation technology,
2. Welding current and thrust current are steplessly adjustable.
3. Low-hydrogen basic electrode has good arc performance
4. Beside MMA welding, it also has TIG function (scratch arc ignition type).
5. Auxiliary output: Single-phase, AC 3kW/220V/50Hz.



Application

1. Oil/gas/water pipeline welding,
2. Maintenance and repair of highway guardrails and power facilities,
3. Repair of fences and agricultural equipment in pastures and farms,
4. Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5. Welding of stainless steel and carbon steel materials
6. Emergency power supply



Main specification sheet

Product Model LWG250C
Welding No-load voltage 65-70V
Welding current range 40-250A
Duty cycle 60%/230A/29.2V
Electrode diameter ¢2.5-¢5.0mm
Generating Rated generating output power AC 3kW/220V/50Hz
Engine Brand KOPO
Model KD195F
Engine power(kW) 9.2
Max rpm 3600
Starting E-start
Lubricant alarm system Yes
Emission(cc) 530
Fuel capacity(L) 5.5
Lubricant capacity(L) 1.65
Fuel consumption(g/k.h) 300
Whole set Insulation Class H level 180℃
Net weight(kg) 95
Overall Dimensions(L×W×H) 740x560x650mm



250A Portable Pipeline / Steel Structure  Diesel Welding Generator With AC 3kW / 220V Output 0



250A Portable Pipeline / Steel Structure  Diesel Welding Generator With AC 3kW / 220V Output 1
