Engine Driven Arc Welder with 8.5kW Peak Power Dual Start System and Low Noise Design for Onsite Metal Joining
|
|
Engine Driven Arc Welder with 8.5kW Peak Power Dual Start System and Low Noise Design for Onsite Metal Joining
| Brand Name: | GENWELD |
| MOQ: | 50 |
| Payment Terms: | T/T,D/P |
Detail Information
After-sales Service Provided:
Overseas Third-party Support Available,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available,No After-sales Service
Dimensions:
1.6-5.0mm,540*205*305mm,Optional,430*250*420,460*380*285mm
Warranty:
1 Year,2 Years,one Year Warranty,12 Months
Packaging Details:
790×575×605
Supply Ability:
3000/Month
Highlight:
8.5kW Peak Power Engine Driven Arc Welder
,Dual Start System Welder Generator
,Low Noise Design Portable Welding Machine
Product Description
Engine Driven Arc Welder
Self-contained welding system combining engine and arc welder for onsite metal joining and repair jobs
Product Overview

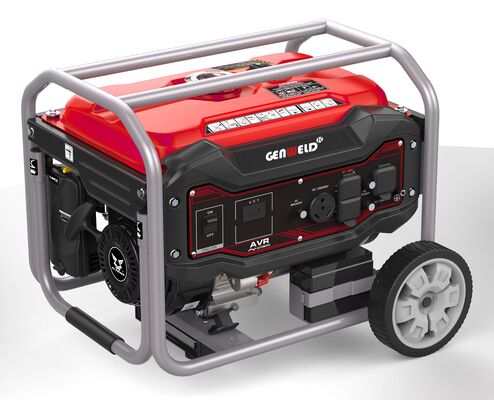

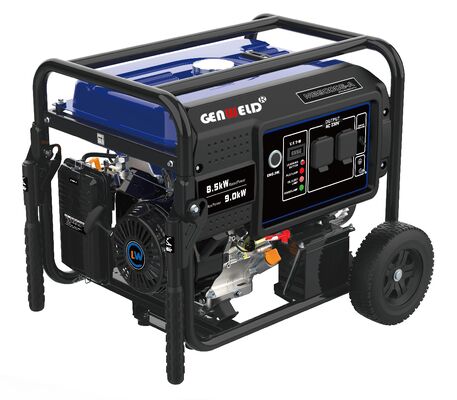

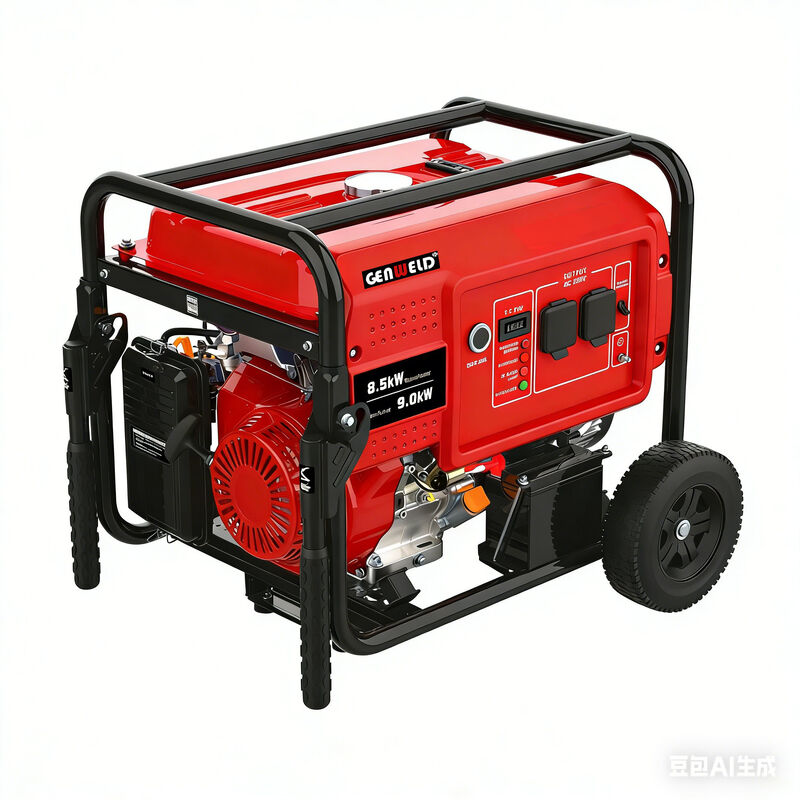

The LW9000 8.5kW gasoline open-frame generator set is a general-purpose power generation device integrating high power, stability, and ease of operation. Compatible with 50Hz power frequency and 230V voltage standards, it features a rated output of 8.0kW and maximum output of 8.5kW. The unit utilizes a 100% pure copper generator and 4-stroke air-cooled power system with dual starting modes and large-capacity fuel tank, balancing performance and usability.
Key Features
- F-class insulation and low-noise design for enhanced safety and comfort
- Suitable for home emergency use, outdoor construction, commercial backup, and field operations
- Cost-effective power solution for various applications
Technical Specifications
Generator Specifications
| Model | LW9000 |
|---|---|
| Starting System | Recoil/E Start |
| Alternator Material | 100% Copper |
| Frequency | 50Hz |
| Voltage | 230V |
| Rated Output | 8.0kW |
| Max Output | 8.5kW |
| Max Fuel Tank Size | 28.0L |
| Running Time at 50% Load | 7.0 hours |
| THD | ≤5% |
| Battery | 12V/14Ah |
| Wheel | 9.5*3 inches |
| Noise Level | ≤74 dB(A) |
| Insulation Grade | F |
Engine Specifications
| Model | GB460-2 |
|---|---|
| Engine Type | 4-Stroke, Air Cooling |
| Displacement | 459 cc |
| Engine Oil Capacity | 1.1L |
Packing Details
| Outside Packing Dimensions | 790*575*605 mm |
|---|---|
| Net Weight | 98 kg |
| 20'FT Container Quantity | 88 units |
| 40'GP Container Quantity | 174 units |
| 40'HQ Container Quantity | 232 units |
Core Features
Powerful Generation Capacity
- Rated output 8.0kW, maximum output up to 8.5kW for simultaneous operation of high-power equipment
- 50Hz standard frequency and stable 230V voltage output with THD≤5% for precision equipment safety
- 100% pure copper generator material for excellent conductivity, higher efficiency, and longer service life
Flexible Starting System
- Dual starting modes: manual start (Recoil) and electric start (E Start) for different scenarios
- 12V/14Ah high-capacity battery for rapid electric start response, stable in low-temperature environments
High-Efficiency Power System
- GB460-2 model engine with 4-stroke air-cooled design and 459cc displacement for powerful performance
- F-class insulation rating for high-temperature resistance and reliable operation in complex environments
- 1.1L oil capacity with comprehensive lubrication system for engine protection
Convenient Operation
- 28L fuel tank enables 7-hour continuous operation at 50% load, reducing refueling frequency
- Large 9.5*3 inch wheels for flexible mobility in outdoor operations
- Open frame design for excellent heat dissipation and easy maintenance access
Core Advantages
High Power Output & Wide Applicability
8.5kW peak power easily drives various equipment including air conditioners, water pumps, and power tools. Suitable for emergency power supply, outdoor construction, and home backup applications.
Stable & Reliable Operation
Pure copper generator combined with Class F insulation provides double protection for equipment safety. Stable voltage with THD≤5% safely powers precision electronic equipment.
Easy Operation & Mobility
Dual start mode design requires no professional skills. Large wheels and balanced weight distribution allow easy single-person movement across various terrains.
Efficient & Economical
4-stroke engine consumes less fuel with 7-hour continuous operation from 28L tank. 1.1L oil capacity extends maintenance intervals, reducing operating costs.
Low Noise Design
Operating noise ≤74dB(A) reduces noise pollution for comfortable indoor or outdoor operation environments.
Durable Construction
Air-cooled design adapts to various temperature environments. High-quality engine and generator components ensure extended service life.
Application Scenarios
Emergency Power Supply
- Household Power Outage: 8.5kW high power simultaneously operates refrigerators, lighting, televisions, and other essential devices
- Commercial Emergency: Maintains critical equipment operation during power outages in shops and small factories
Outdoor Work Applications
- Construction Sites: Provides stable power for power tools and temporary lighting, independent of grid power
- Outdoor Events: Supports audio equipment, lighting, and catering equipment for various activities
Outdoor Living & Field Operations
- RV Camping: Powers air conditioning, refrigerators, and kitchen equipment for enhanced camping comfort
- Fieldwork: Provides continuous stable power for communication equipment and testing instruments
