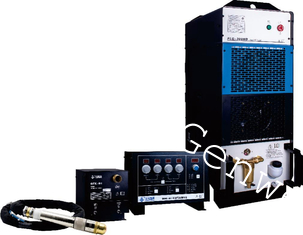

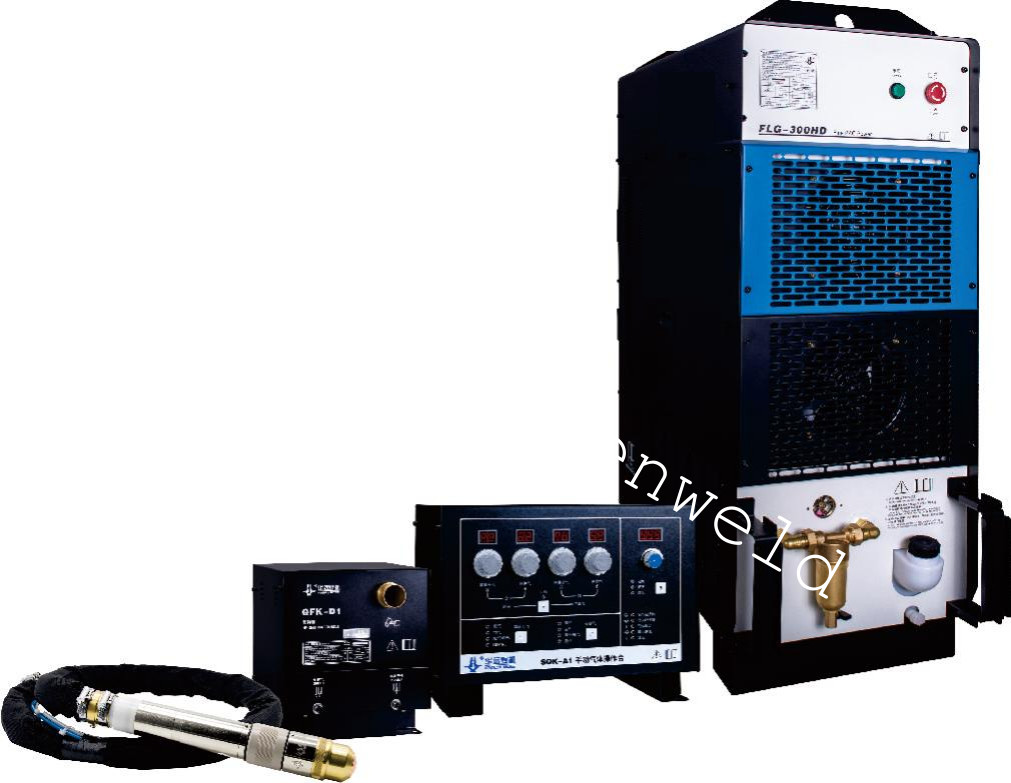

LG-125HA/200HA Pro Inverter Automated Plasma Cutting Machine
| Brand Name: | GENWELD |
| Model Number: | LG-125HA/200HA |
| MOQ: | 10 sets |
| Delivery Time: | 20 days after received 40% prepayment |
| Payment Terms: | T/T |
Product Main Features
■ Special design for CNC cutting machine,with small volume,light weight
■ High tech HF control technology which is separate from the power source to reducethe HF interference
■ Gas control separate from the power source:shorter gas circuit,more stable gaspressure with good cutting quality
■ 100%duty cycle for heavy industry use
■ Cutting current up-slope technology to reduce consumption of wearing parts
■ With gas pressure detecting and displaying function
■ Gas check function for easier adjust of the air pressure
■ With automatic protection function of over-heating,overvoltage,lackvoltage anddefault phase
■ LG-125HA with constant pilot arc strike function,which is suitable for grid platecutting
■ LG-200HA Pro with torch cooling system inside,which is withhigh-lift pump and high power radiator to reduce the loss of wearing parts
Product Application
■ Suitable for cutting carbon steel,alloy steel andnonferrous steel
Main Technical Parameters
|
Item |
Unit |
Model | |
| LG-125HA | LG-200HA Pro | ||
| Input Power | V/Hz | 3~380±15%50/60 | |
| Rated Input Capacity | KVA | 21.7 | 52.3 |
| Rated Input Current | A | 33 | 78 |
| Rated Output Current/Voltage | A/V | 125/130 | 200/200 |
| Rated Open Circuit Voltage | V | 310 | 360 |
| Rated Duty Cycle | 100%(40℃) | ||
| Efficiency | 90% | 92% | |
| Power Factor | 0.82 | 0.83 | |
| Output Curent AdjustRange | A | 30～125 | 40～200 |
| Arc Voltage Output Ratio | 1:1 | ||
| Arc Strike Mode | Non-Contact | ||
| Plasma Gas | Air | Air/N₂/O₂ | |
| Shielding Gas | Air/N₂ | ||
| Air Pressure | MPa | 0.4~0.6 | |
| Quality Cut Thickness (CarbonSteel) | mm | 25(580mm/min) | 32(500mm/min) |
| Insulation Grade | F | ||
| Power Source Cooling Mode | Air Cooling | ||
| Torch Cooling Mode | Air Cooling | Water Cooling | |
| Ingress Protection | IP21S | ||
| Dimension(LxWxH) | mm | 670×320×600 | 875×410×935 |
| Arc Ignition Controller Net Weight | Kg | 4.5 | 7.8 |
| Power Source Net Weight | Kg | 49 | 116 |
