150A Portable Welding Generator With MMA/TIG/Cellulose Processes
Product Details:
| Place of Origin: | China |
| Brand Name: | GENWELD |
| Certification: | EPA |
| Model Number: | FW150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 SETS |
|---|---|
| Price: | USD 800-850 per set |
| Packaging Details: | Carton(550×390×540mm) |
| Delivery Time: | 30 work days |
| Supply Ability: | 500 SETS PER MONTH |
|
Detail Information |
|||
| Welding Process: | MMA/TIG/Cellulose | Welding Current: | 30-150A |
|---|---|---|---|
| Duty Cycle: | 60%/140A/25.6V | Electrode Dia.: | 1.6-4.0mm |
| Auxiliary Power Output: | 3.6kW/220V/50/60Hz | Fuel: | Gasoline |
| Protection/Insulation Class: | IP23 | Net Weight: | 37kg |
| Dimension: | 530×348×490mm | ||
| High Light: | 130A Portable Welder Generator,IP23 Gasoline Portable Welder Generator,Inverter Control Portable Welder Generator |
||
Product Description

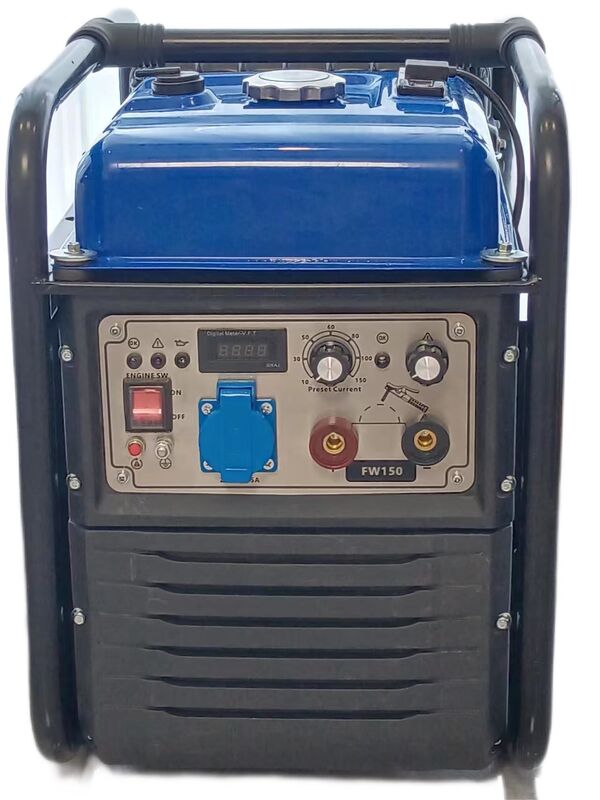

FW150 150A Gasoline Welding Generator
Introduction
"FW150 is a portable MMA welding generator,due to its small size, light weight, convenient movement, and self-generation,FW150 welding generator is very suitable for wild welding.It output 140A welding current, can weld Acid/Basic/Cellulose electrodes(E6011,E7018); meanwhile
it also can output 3.6kW/230V auxiliary power,running several kinds of powered tools such as grinders, electric drills, water pumps, tamping machines, lights, etc.on the construction site.
Characteristics
1. Can be used for welding and power generation, can continuous weld Ȼ1.6--Ȼ3.2 electrodes, and rated output AC 3.6kW/240V/50Hz auxiliary power.
2. Adopt digital inverter control technology, excellent welding performance
3. Medieum frequency permanent magnet generator,90% generating efficiency
4. Small size, only 37kg, easy movement.
Application
1.Maintenance and repair of highway guardrails and power facilities,
3.Maintenance of fences & agricultural equipment in pastures and farms,
4.Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5.Welding of stainless steel and carbon steel materials
6.House emergency power supply
| Main specification sheet | |||
| Welding | Welding type | Inverter welding | |
| Open circuit voltage (V) | 60 | ||
| Current adjustment range | 40～150 | ||
| Welding current (A) | 140 | 110 | |
| Welding voltage (V) | 25.6 | 24.4 | |
| Duty Cycle | 60% | 100% | |
| Generator | Rated output power | 3.6KW | |
| Max. output power | 4.0KW | ||
| Rated output voltage | AC 220V | ||
| Rated output current | 13A | ||
| Frequency | 50/60Hz | ||
| Power factor | 1 | ||
| Engine | type | GB270B-2 | |
| Valve layout | OHV | ||
| Displacement | 272cc | ||
| Type of ignition system | TCI | ||
| Start method | Pull start | ||
| Oil volume | 1.0L | ||
| Whole set | Cooling method | Forced air | |
| Dimension.(mm) | 530×348×490 | ||
| Fuel volume | 9.6L | ||
| Weight (net) | 37Kg | ||
| Protection/Insulation class | IP23/F | ||
| Quotation:USD900/set FOB Shanghai,mini order:10 sets | |||
| Warranty:1 year | |||
| Payment term:30% T/T advance, balance paid off before shipment. | |||
| Delivery term:30 days after received 30% prepayment. | |||
