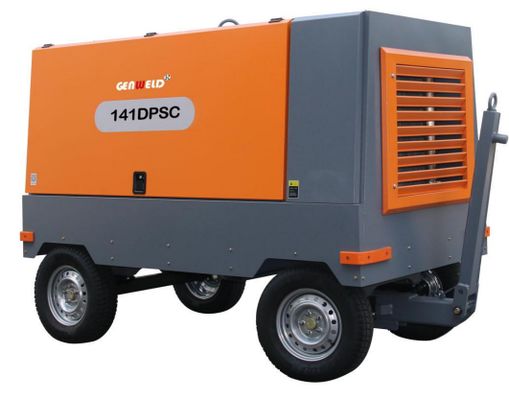

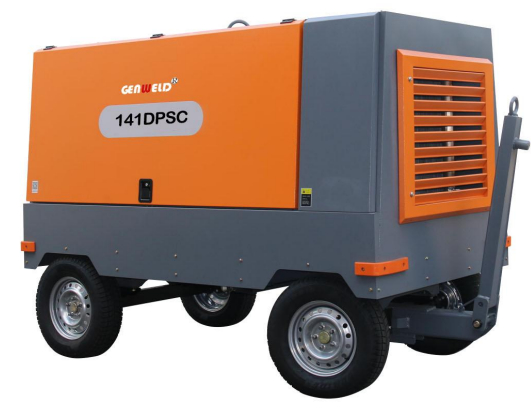

GENWELD 188HP Single-stage screw compression/Yuchai 140KW Engine (141DPSC)

I. Core Performance Parameters

• Rated FAD (Free Air Delivery): Features a rated free air delivery of 15 m³/min, enabling efficient and large-volume compressed air output. It can easily support the simultaneous operation of multiple heavy-duty pneumatic tools, fully meeting the high air consumption needs of large-scale construction or industrial production lines, and avoiding work delays caused by insufficient air supply.
• Rated Pressure: Boasts a rated working pressure of 15 bar (approximately 217.5 PSI), which is significantly higher than that of conventional models. This high-pressure output is particularly suitable for pneumatic equipment that requires strong pressure support (such as high-pressure air impact tools), ensuring stable power transmission and reliable operation of the tools.
• Power System: Comes standard with an engine complying with China National Emission Standard IV, equipped with a Yuchai-brand engine with a rated power of 140 KW. The engine has excellent power performance and fuel economy—while providing strong driving force for the air compressor, it also meets strict domestic environmental protection requirements, making it applicable to emission-sensitive areas such as urban construction sites.
• Endurance Capacity: Equipped with a large-capacity diesel tank of 230 L. Combined with the engine’s fuel-saving design, the equipment can achieve ultra-long continuous operation time, greatly reducing the frequency of on-site refueling, minimizing work interruptions, and effectively improving overall work efficiency.

II. Structure and Dimension Configuration

• Mobility Mode: Adopts a 4-wheel design, which has stronger load-bearing capacity and movement stability compared to 2-wheel models. When matched with a suitable traction device (to be selected according to actual use scenarios), it can be flexibly transferred in large construction sites or complex terrain environments (such as uneven mining areas), ensuring good adaptability to on-site conditions.
• Overall Weight: Has a net weight of 2,600 kg. The reasonable weight distribution not only ensures the stability of the equipment during high-pressure and high-load operation (avoiding shaking or displacement) but also is compatible with most medium and heavy-duty transport vehicles, facilitating long-distance transportation between different construction sites.
• Overall Dimensions: Measures 3,250 × 1,610 × 2,470 mm (L×W×H). The size is optimized to balance performance and spatial adaptability—while accommodating large-capacity components (such as the 230 L diesel tank and high-power air end), it still fits into most construction site storage areas and standard transport compartments, avoiding deployment difficulties due to excessive volume.
• Air End: Utilizes a single-stage compression structure for the air compressor host. This structure simplifies the internal mechanical structure, reduces the number of easily damaged parts, lowers the difficulty and cost of daily maintenance, and can stably output high-pressure, high-quality compressed air that meets working requirements, achieving a perfect balance between operational reliability and maintenance convenience.
