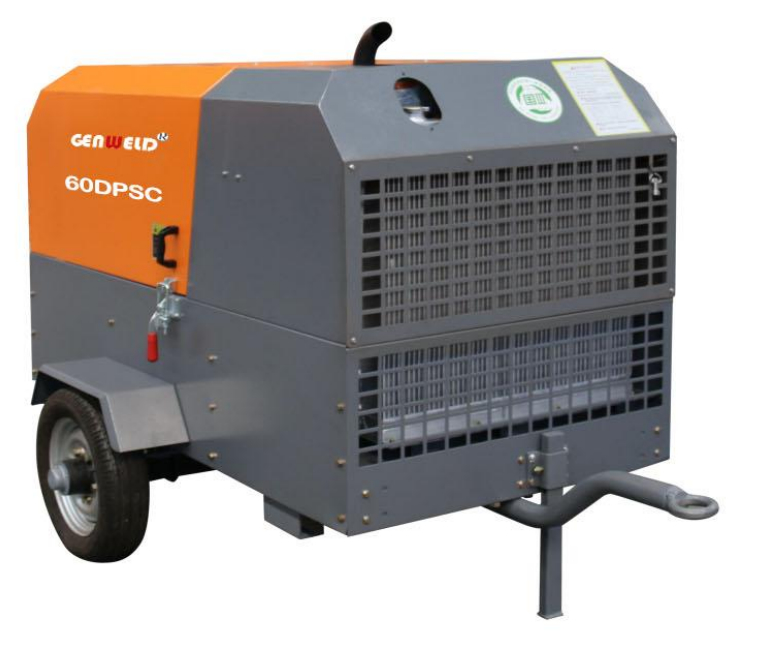

GENWELD 79HP Single-stage screw compression/Xichai 55.8KW Engine (60DPSC)

I. Core Performance Parameters

• Rated FAD (Free Air Delivery): The rated free air delivery reaches 9 m³/min, which can efficiently output compressed air. It is compatible with simultaneous operation of multiple pneumatic tools and meets the requirements of medium and high-load working conditions.
• Rated Pressure: The rated working pressure is 7 bar (approximately 101.5 PSI), which is compatible with the pressure requirements of most conventional pneumatic equipment and ensures the stable operation of tools.
• Power System: It is equipped with an engine that meets the China National Emission Standard IV as standard, adopting a Xichai-brand model with a rated power of 55.8 KW. It balances power output and environmental protection requirements and can be adapted to scenarios with strict domestic emission regulations.
• Endurance Capacity: The diesel tank has a volume of 85 L. Combined with the fuel-efficient design of the engine, it can provide the equipment with a long continuous operation time and reduce the downtime impact caused by frequent refueling.

II. Structure and Dimension Configuration

• Mobility Mode: It adopts a 2-wheel design and is matched with a suitable traction structure (to be matched according to the actual usage scenario), which is convenient for flexible transfer in workplaces such as construction sites and factories, improving the mobility of the equipment.
• Overall Weight: The net weight of the equipment is 1,280 kg. The moderate weight not only ensures stability during operation but also reduces the difficulty of short-distance handling or loading and transportation.
• Overall Dimensions: The length × width × height is 2,700 × 1,600 × 1,700 mm. It has a compact structure and occupies a small space, which is convenient for storage or deployment in narrow working areas and can also be adapted to the transportation size limits of most ordinary trucks.
• Air End: The air compressor host adopts a single-stage compression structure. Its structure is relatively simple, resulting in low maintenance difficulty. At the same time, it can stably output compressed air that meets the working condition requirements, balancing efficiency and reliability.
