Effortlessly transport and place the LianWai Horizontal Handheld Laser Welding Machine models LW-G1500W/2000W for versatile
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | GENWELD |
| Certification: | ISO9000 |
| Model Number: | LW-G1500W/2000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Delivery Time: | 2-7 works days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Laser Output Mode: | 4 Mode ( CW, PWM, QCW, Argon ) | Warranty: | 1 Year |
|---|---|---|---|
| Laser Pulse Frequency: | 1-50Hz | Optical Head: | QBH |
| Laser Wavelength: | 1064nm | Function: | Metal Part Laser Welding |
| Machine Dimension: | 67*30*55CM | Welding Beam Size: | 0-5mm Adjustable ( 0-10mm Option ) |
| Welding Thickness: | 0.5-5mm | Application: | Metal Stainless Steel Laser Welder |
| Usage: | Welding | ||
Product Description

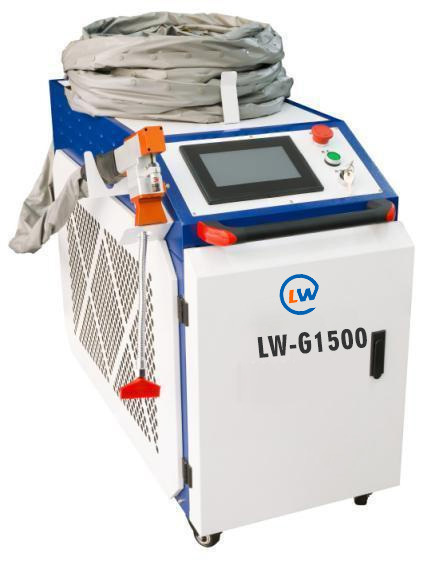

Introducing the LianWai Horizontal Handheld Laser Welding Machine (models: LW-G1500W/2000W), a standout in welding technology.
It retains all functions and features of vertical laser welding machines. Notably, the laser is placed sideways in the chassis, which greatly reduces the machine’s volume, enabling easy transportation and placement — ideal for both workshop and on-site use.
Key technical advantages:
1.Power & Environment: Operates on 220V±10%, 50Hz (rated current ≤14A), suiting standard power setups. It works well in temperatures 5–40℃ and humidity 10–90%, adapting to diverse conditions.
2.Cooling & Durability: Uses water cooling with dual-temperature and dual-control, ensuring stable heat dissipation. It supports long-term continuous operation (≤2% over 24 hours) and has a utilization rate ≤99.5%, guaranteeing high productivity and reliability.
3.Optical & Precision: Features a 1080nm laser wavelength, 50um/10m optical fiber, and 20 KHz modulation frequency for precise, efficient welding. With single-beam output, it delivers focused energy for quality welds on various materials.
4.Size & Portability: Measures 900430710 mm and weighs only 87 kg — compact and lightweight for easy movement, while still powerful for professional welding needs.
This machine blends versatility, efficiency, and ease of use, making it perfect for modern welding applications, from large-scale manufacturing to flexible on-site tasks.
| Product name | Horizontal Handheld Laser Welding Machine |
| Product model | LS-1500W / LS-2000W |
| Power demand | 220V±10%,50Hz,rated current:≤14A |
| Using environmental | Temperature 5-40℃,Humidity 10-90% |
| Cooling method | Water cooling(dual temperature and dual control) |
| Working hours | ≤2%24H(continuous operation) |
| Utilization rate (%) | ≤99.5 |
| Laser wavelength ( nm) | 1080nm |
| Optical fiber | 50um 10m －－ |
| Modulation Freq(KHz) | 20 |
| Beam output output | 1 Beam |
| Dimensions (mm) | 900*430*710 |
| Weight (kg) | 87 |
