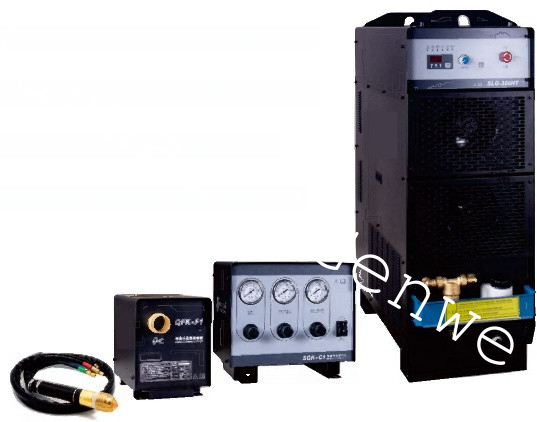

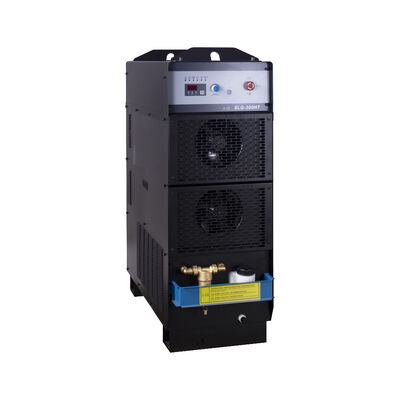

SLG-200/300/400HT Inverter Automated Plasma Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GENWELD |
| Model Number: | FLG-200/300/400HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | 1060×480×1010 |
| Delivery Time: | 5*8 days |
| Payment Terms: | T/T |
|
Detail Information |
Product Description
Main Features
■Equip with gas console, different gas cuting process is workable, plasma gas and shield gas
is separately adjusted to get higher precision cutting
It's based on high definition plasma technology, 100% rated duty cycle for heavy industry
use,full equipped communication control interface, especially designed for CNC machine
cutting and robot cutting
■Excellent HF arc striking control technology and separate structure of HF controller & power
source, which highlyreduces HF interference
■Isolation technology is adopted in communication signal, which ensures stable
communications and strong anti-interference
Gas control separate from the power source: shorter gas circuit, more stable gas pressure
and higher arc ignition reliability
Torch cooling system built inside, with high-lift pump and high power radiator to reduce the
consumption of torch consumables
■With analog connectors and RS485 digitalcommunication connectors, can equip with
various CNC control systems
■With coolant flow and temperature/gas pressure detecting function to protect the plasma
torch
Main Technical Parameters
| ltem | Unit | Model | ||
| SLG-200HT | SLG-300HT | SLG-400HT | ||
| Input Power | V/Hz | 3～380±15%50/60 | ||
| Rated Input Capacity | KVA | 53 | 72 | 93 |
| Rated Input Current | A | 80 | 110 | 140 |
| Rated Output Current/Voltage | A/V | 200/200 | 300/200 | 400/200 |
| Rated Open Circuit Voltage | V | 360 | 370 | 370 |
| Rated Duty Cycle | ■ | 100%(40℃) | ||
| Efficiency | ■ | 0.93 | 0.93 | 0.94 |
| Power Factor | ■ | 0.79 | 0.89 | 0.91 |
| Output Current Adjust Range | A | 40～200 | 60～300 | 60～400 |
| Arc Voltage Output Ratio | - | 1:1 | ||
| Arc Strike Mode | ■ | Non-Contact | ||
| Plasma Gas | # | Air/Nz/O₂ | ||
| Shielding Gas | Air/N₂ | |||
| Air Pressure | MPa | 0.5～0.8 | ||
| Quality Cut Thickness (Carbon Steel | mm | 25 | 38 | 50 |
| Insulation Grade | ■ | F | ||
| Power Source Cooling Mode | = | Air Coolinc | ||
| Torch Cooling Mode | ■ | Water Coolinc | ||
| Ingress Protection | ■ | IP21S | ||
| Dimension (L×W×H) | mm | 900×410×1000 | 1050×480×1275 | 1050×480×1335 |
| Gas Console Net Weight | n 1 | 8 | ||
| Arc Ignition Controller Net Weight | Kg | 8 | ||
| Power Source Net Weight | Kg | 116 | 200 | 216 |
