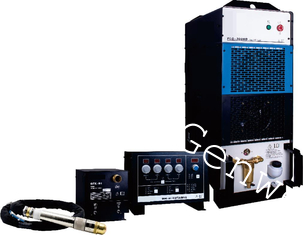

FLG-200/300/400HD Inverter Fine Plasma Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GENWELD |
| Model Number: | FLG-200/300/400HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | 1060×480×1010 |
| Delivery Time: | 5*8 days |
| Payment Terms: | T/T |
|
Detail Information |
Product Description
Product Introduction
Thanks for Huayuan'scade of research &development and experience,the fine plasma cutting machine is a
successful breakthrough after thousands of testing &improving with more than 5 years,ita high definition plasmacutting machine whichsuitable for metal cutting suchcarbon steel,aluminum,copper,etc.An innovative and0original technology ofCTech is used in this plasmatting machine,accurate current control makes excellentcutting quality.SeverallD achievements on this machiave been applied to intellectualproperty protection.
*CRCTech iscurrent ripple control technology.
Main Features
■ The CRCTechis used on this machine,the ripple of the output current issmall,which makes reliable cutting quality and glossy cut
■ A specially adjusted torch cooling system with high-power &high liftpump and high-power heat radiation structure,which highly lengthen theconsumables working life
■ With separate gas input connectors for different gas cutting process,getthe best cutting condition for different metal materials
■ Excellent high frequency arc ignition controlling technology,separatedesign of high frequency box and plasma power source,which highlyreduces the high frequency interference and get 100%arc startingsuccess rate
■ Various of communication control connector,can easily work withdifferent type of CNC control systems
| Main Technical Parameters | ||||
| ltem | Unit | Model | ||
| FLG-200HD | FLG-300HD | FLG-400HD | ||
| Input Powe | V/Hz | 3～380±15%50/60 | ||
| Rated Input Current | A | 71 | 110 | 140 |
| Rated Input Capacity | KVA | 48.6 | 72.4 | 93 |
| Rated Output Current/Voltage | A/V | 200/200 | 300/210 | 400/200 |
| Rated Open Circuit Voltage | V | 360 | 370 | |
| Rated Duty Cycle | 100%(40℃) | |||
| Efficiency | 93% | 94% | ||
| Power Factor | 0.92 | 0.91 | ||
| Output Current Adjust Range | A | 15～200 | 15～300 | 15～400 |
| Arc Strike Mode | Non-Contact | |||
| Quality Cut Thickness(Carbon Steel | mm | 25 | 38 | 50 |
| Piercing Thickness(Carbon steel) | mm | 25 | 38 | 50 |
| Severance Cut Thickness (Carbon Steel) | mm | 50 | 64 | 80 |
| Insulation Grade | F | |||
| Power Source Cooling Mode | Air Cooling | |||
| Torch Cooling Mode | Water Cooling | |||
| Ingress Protection | 一 | IP21S | ||
| Dimension(L×W×H) | mm | 1060×480×1010 | 1060×480×1275 | |
| Power Source Net Weight | Kg | 140 | 200 | 216 |
| Gas Console Net Weight | Kg | 17 | 22 | 22 |
| Arc Ignition Controller Net Weight | Kg | 14 | ||
