1080nm Handheld Laser Welder 120mm/S For 0.5mm Galvanized Sheet

1080nm Handheld Laser Welder 120mm/S For 0.5mm Galvanized Sheet

Product Details:

Place of Origin: China
Brand Name: GENWELD
Certification: CE
Model Number: LW-JW15

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Packaging Details: Packing with form & carton, carton size:
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Laser Power: 1500W Laser Wavelength: 1080(±10)nm
Electricity Demand: 220V±10% / 50Hz / 60A Whole Machine Power: ≤8KW
Plate Welding Penetration: Carbon Steel: 0.5~3.9mm Stainless Steel: 0.5~3.7mm Galvanized Sheet: 0.5~3.8mm Net Weight: 220kg
High Light:

1080nm Handheld Laser Welder

,

0.5mm Sheet Handheld Laser Welder

,

120mm/S Handheld Laser Welder

Product Description

1500kW Handheld Laser Welder



Production Introduction

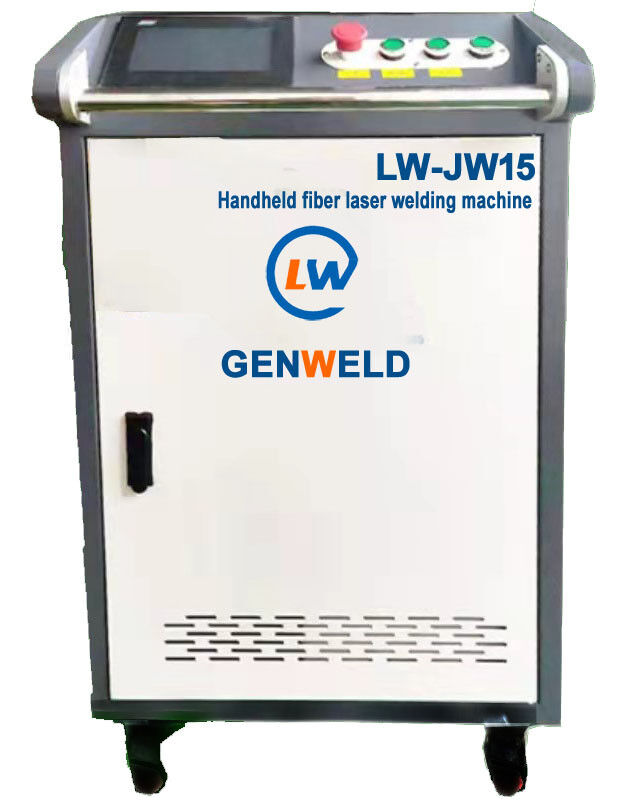

LW-JW15 handheld laser welding machine is a precision, high-speed laser welding equipment developed by Chongqing Lianwai Technology Co., Ltd. for the sheet metal processing industry to solve welding deformation & hard polishing of thin plates.

LW-JW15 adopts split photoelectric module design, optical module, electric module, control unit, drive unit, etc. can be directly

replaced, upgraded, and maintained at the client side, which is more convenient to use. Users can choose fibers with different core diameters according to different processing requirements to meet differentiated processing needs. It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc., for laser fine cutting, precision welding, etc.



Product Advantages:
Easy operation: using touch screen control panel, systematic integration, easy to learn, simple operation, no need for professional welders;
Small thermal distortion: concentrated energy output, small weld width, small heat-affected zone and small distortion
Fast welding speed: the welding process can be pulled and spot welded, with very high production efficiency;
Supporting wire feeder: Intelligent dual-drive wire feeding module, making filler wire welding easier.



Comparison between LW-JW15 and similar laser welding machines:
1. The unique design of the three filter grid protection cavity in front of the gun head can effectively remove welding residue and dust compared with competing products, greatly extend the service life of the protective lens and reduce the cost of consumables.
2. The welding head has a one-word swing width effect, and the width can be adjusted from 1-6mm. Compared with Ospur, the welding head presents a circular swing with a diameter of 2mm and the size cannot be adjusted; Wanshunxing welding head has a straight swing effect, with a width of 1-5mm adjustment (the corresponding welding swing width is suitable, the wider the swing , The smaller the welding thickness, the larger the welding area due to the same energy).
3. Special board card, matched with high-power automatic wire feeder, with sufficient wire feeding force. During operation, the force of the wire feeder can be used to push the gun head to move at a uniform speed. The welding effect is smoother and smoother, and the operation is simpler.
4. The swing width of the gun head can be adjusted, and the welding spot color can be controlled when welding stainless steel and other metal materials. If the welding spot color is deepened, the gun head can adjust the swing width to 5mm to whiten the weld and make the weld more beautiful.



Technic Data Sheet



Model LW-JW10 LW-JW15 LW-JW20
Laser power 1000W 1500W 2000W
Laser brand MAX(optional)
Laser type Optical Fiber/YAG
Laser wavelength 1080(±10)nm
Electricity demand 220V±10% / 50Hz / 60A 380V±10%/50Hz/60A
Equipment power ≤8KW
Plate welding penetration Carbon steel: 0.5~3.9mm
Stainless steel: 0.5~3.7mm
Galvanized sheet: 0.5~3.8mm
Welding speed range 0~120 mm/s
Wire diameter 0.8mm~1.6mm
Welding head configuration (CQWY)Swing welding head + built-in water cooling (optional)
Laser operating mode Continuous/pulse
Welding head interface Standard QBH
Output fiber length 15 M
Positioning mode Red light
Cooling system (Kelida)Industrial constant temperature water tank (30L)
